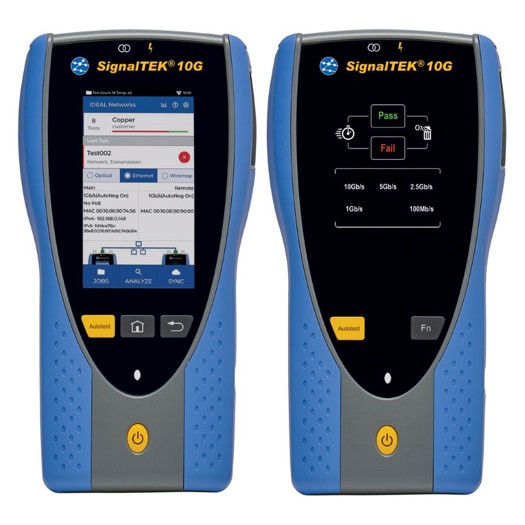

SIGNALTEK 10G FIBER UPGRADE ADD-ON

Model: UPGRADE10GFIB

Category:

Brand: Trend Networks

Dealer pricing

IDEAL Networks UPGRADE10GFIB - Upgrade SignalTEK 10G with Fibre Testing Option

The IDEAL Networks UPGRADE10GFIB is a fibre testing option upgrade for SignalTEK 10G. Verify fibre link speed to 1G or 10G, measure optical power and data throughput.

  • Validate Fibre Link Speed – The fibre link speed test confirms the connection is 1G or 10G which can be affected by cable length or signal loss.
  • Troubleshoot Fibre Cable Issues – The Tx & Rx optical power measurement is compared to the expected power level to determine attenuation in a fibre link. This indicates if the connector is dirty or damaged which is the number one cause of failure.
  • Easy to understand traffic light status – The simple traffic light indicator displays Good, Marginal or Poor power level based on IEEE 802.3 1G/10G limits.
  • Max throughput test – The SignalTEK 10G will prove the maximum available bandwidth over the fibre link up to 10Gb/s.
  • Discover a faulty SFP – The SFP temperature is measured to help understand if it has become faulty.

Features

  • Fibre Testing Option upgrade for SignalTEK 10G
  • Optical Tx/Rx power indication
  • Max bandwidth test up to 10Gb/s
  • Data transmission test 1/10Gb
  • Pass / Fail to fibre IEEE standards
  • SFP temperature, vendor and model
  • Supports SFP/SFP+ (MM&SM)

ADI Part Number KN-UPGD10GFI
Brand Name TREND Networks
Model UPGRADE10GFIB
