Speco 8 Channel High Megapixel HD-TVI DVR

Model: D8VX1TB

Category: Recording Devices, HDoC DVRs

Brand: Speco Technologies

Dealer pricing

The8-Channel 4MP HD-TVI DVR with 1TB HDDfromSpeco Technologiesfeatures 8 BNC camera inputs that support HD-TVI analog video. It records 960H resolution video per channel with up to a combined 4MP resolution (at 15 fps per channel). It includes 1TB of preinstalled HDD storage and is upgradeable via the manufacturer to a total of 10TB.

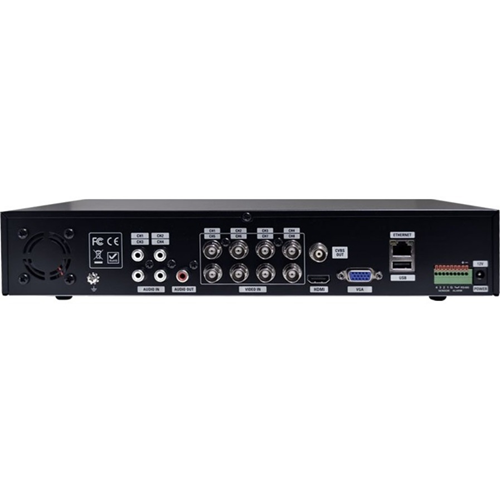

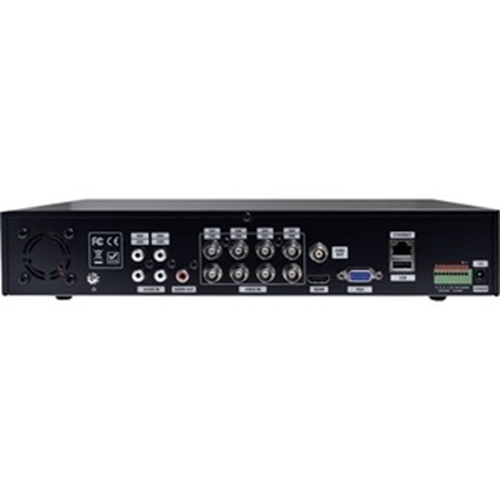

The DVR has VGA and HDMI main monitor outputs, a switchable composite/spot BNC output, and audio and alarm input/outputs. It uses H.264 compression, offers dual streaming, and is compatible with iOS and Android for remote access via your mobile device.

Main Features

  • Up to 1600' camera signal transmission over coax
  • Digital Deterrent support for up to 8 audio files for sensor or motion detection triggering
  • HDD capacity can be upgraded by Speco
  • Built-in S.M.A.R.T technology (Self-Monitoring, Analysis, and Reporting Technology for HDD)
  • Smart (Museum) Search: Quickly search for a specific video event without the need for motion setup
  • Up to 12 simultaneous users for live viewing, 1 user for playback
  • Remote monitoring, recording, playback, configuration, software upgrades, and PTZ control over a network
  • Network accessible via SpecoTech Multi-Client Software, SecureGuard, Web-Viewer, and Speco Player Mobile app (iOS/Android)
  • Windows and Mac compatible

Application/Usage Digital Video Recorder
Brand Name Speco
Category Type HDoC DVRs
Composite Video In Yes
Composite Video Out Yes
Connectivity Technology Wired
Depth 9.9"
Environmentally Friendly Yes
Ethernet Yes
Frame Rate 30 Frames Per Second
Hard Drive 1 TB
Hard Drive Capacity 1 TB
HD Recording Yes
HDMI Yes
Height 2", 11.8", 9.9"
Limited Warranty 5 Year
Manufacturer Speco Technologies
Model D8VX1TB
Maximum Frame Rate 30 fps
Maximum Resolution 2688 x 1520
Maximum Video Resolution 2688 x 1520
Number of +12V Rails 8
Number of VGA Out 1
Packaged Quantity 1, 4
Product Type Video Surveillance Station
Remote Management Yes
System Components Digital Video Recorder
Total Number of Audio In Ports 4
Total Number of Audio Out Ports 1
Total Number of Channels 8
USB Yes
Vendor Name Speco Technologies
Video Formats AVI, H.264, AVI, H.264
Width 11.8", 2"
