Speco 16 Channel High Megapixel HD-TVI DVR
Speco 16 Channel High Megapixel HD-TVI DVR

Speco 16 Channel High Megapixel HD-TVI DVR

Model: D16VX4TB

Category: Recording Devices, HDoC DVRs

Brand: Speco Technologies

Dealer pricing

Record from and manage up to 16 cameras with the16-Channel 4MP HD-TVI DVR with 4TB HDDfromSpeco Technologiesat resolutions up to 2688 x 1520. Preinstalled with 4TB of HDD storage, the recorder can be expanded to host a maximum HDD capacity of 10TB. H.264 video compression keeps file size manageable while maintaining the best quality possible. The recorder supports HD-TVI technology and is backward compatible with standard analog cameras. Two-way audio is supported. An HDMI connection provides up to 4K UHD resolution video output.

UTC (Up-the-Coax) connection enables zoom/focus and OSD control. An IR remote control and mouse are included with the recorder.

Main Features
  • Setup: for quick system setup
  • Network: network setup and port forwarding
  • Record: quickly setup recording resolution and recording type
  • Supports up to 4MP resolution (over coax)
  • Backward compatible with all analog cameras
  • UTC function allows for zoom/focus and OSD control over coax
  • Signal distance up to 1600 feet

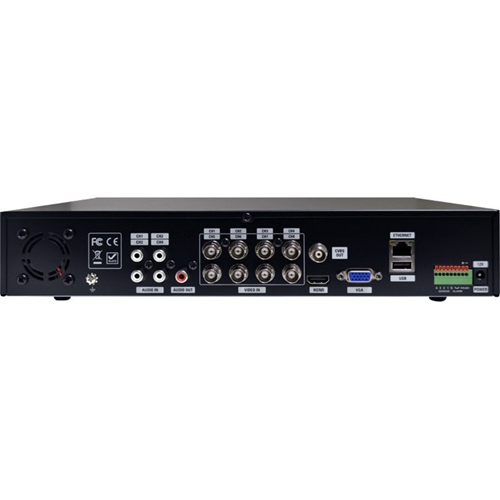

  • Video Out: 1 HDMI®, 1 VGA, 1 CVBS
  • H.264 video compression
  • Networkable DVR with free Speco DDNS server

Application/Usage Digital Video Recorder
Brand Name Speco
Category Type HDoC DVRs
Composite Video In Yes
Composite Video Out Yes
Connectivity Technology Wired
Depth 9.9"
Environmentally Friendly Yes
Ethernet Yes
Frame Rate 30 Frames Per Second
Hard Drive 4 TB
Hard Drive Capacity 4 TB
HD Recording Yes
HDMI Yes
Height 11.8", 9.9", 2"
Limited Warranty 5 Year
Manufacturer Speco Technologies
Model D16VX4TB
Maximum Frame Rate 30 fps
Maximum Resolution 2688 x 1520
Maximum Video Resolution 2688 x 1520
Number of PoE+ (RJ-45) Ports 16
Number of VGA Out 1
Packaged Quantity 1, 4
Product Type Video Surveillance Station
Remote Management Yes
Storage Capacity 4 TB
System Components Digital Video Recorder
Total Number of Audio In Ports 4
Total Number of Audio Out Ports 1
Total Number of Channels 16
USB Yes
Vendor Name Speco Technologies
Video Formats AVI, H.264, AVI, H.264
Width 11.8", 2"
