Speco 4 Channel High Megapixel HD-TVI DVR
Speco 4 Channel High Megapixel HD-TVI DVR

Speco 4 Channel High Megapixel HD-TVI DVR

Model: D4VX1TB

Category: Recording Devices, HDoC DVRs

Brand: Speco Technologies

Dealer pricing

Stream and record up to four channels of video with the4-Channel 4MP HD-TVI DVR with 1TB HDDfromSpeco Technologies. This HD-TVI DVR records video at resolutions up to 4MP. Equipped with one HDD bay, the DVR includes 1TB of storage. External storage and backup options include PCs via internet connection, network servers, and USB storage devices. Network bandwidth use is optimized while ensuring high-quality recording and playback using H.264 dual-streaming compression.

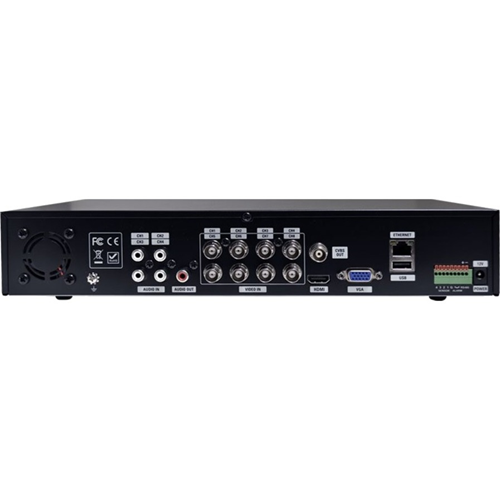

This DVR enables simultaneous live view or playback of up to four channels at resolutions of up to 2688 x 1520 via its VGA, HDMI, and CVBS ports. Up to four channels can be recorded simultaneously at frame rates of 10 fps per channel at 4MP, 13 fps per channel at 3MP, or 15 fps per channel at 2MP resolution. Internet connectivity enables remote monitoring via Windows & Mac computers and iOS & Android mobile devices. The DVR is equipped with an RS-485 serial port, as well as with four line inputs and one line output for two-way audio communication with network clients.

Main Features
  • Supports coaxial cable runs of up to 1600'
  • Supports HDDs up to 10TB with upgrades by Speco to maintain warranty
  • Digital Deterrent supports up to eight audio files for triggering during sensor or motion detection
  • Two-way audio communication
  • Built-in S.M.A.R.T technology
  • Password to secure installation authorization
  • Smart (museum) search allows quick search for specific video event without need for motion setup
  • Firmware upgrade via USB port
  • Instant backup via USB flash drive
  • Supports multiple Windows-based browsers, including Internet Explorer and Firefox
  • Simultaneous playback/record while continuing network transfer or backup
  • Up to 12 simultaneous users for live viewing, one for playback
  • Remote monitoring, recording, playback, configuration, software upgrades, and PTZ control via internet
  • Network access via SpecoTech multi-client software, SecureGuard, web viewer, and Speco Player mobile app
  • Windows and Mac compatible
  • UTC function allows for zoom/focus and OSD control over coax
  • Backward-compatible with most analog cameras
  • Daylight Savings (DLS), EZ record, email notifications, and Network Time Protocol (NTP)
  • Beep provides auditory alert of video loss or HDD error
  • US-based DDNS server access

Application/Usage Digital Video Recorder
Brand Name Speco
Category Type HDoC DVRs
Composite Video In Yes
Composite Video Out Yes
Connectivity Technology Wired
Depth 9.9"
Environmentally Friendly Yes
Ethernet Yes
Frame Rate 30 Frames Per Second
Hard Drive 1 TB
Hard Drive Capacity 1 TB
HD Recording Yes
HDMI Yes
Height 11.8", 9.9", 2"
Limited Warranty 5 Year
Manufacturer Speco Technologies
Model D4VX1TB
Maximum Frame Rate 30 fps
Maximum Resolution 2688 x 1520
Maximum Video Resolution 2688 x 1520
Number of VGA Out 1
Packaged Quantity 4, 1
Product Type Video Surveillance Station
Remote Management Yes
System Components Digital Video Recorder
Total Number of Audio In Ports 4
Total Number of Audio Out Ports 1
Total Number of Channels 4
USB Yes
Vendor Name Speco Technologies
Video Formats AVI, H.264, AVI, H.264
Width 11.8", 2"
