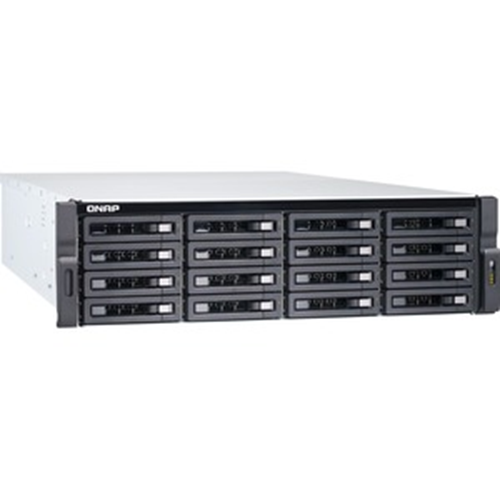

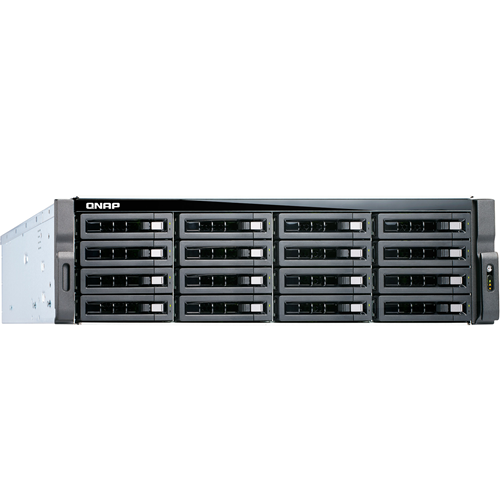

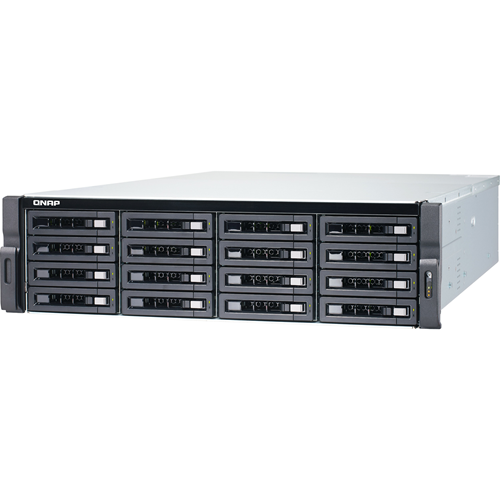

Model: TS-1673U-RP-16G-US
Category: Storage
Brand: Qnap
Dealer pricingPowered by a high-performance AMD R-Series quad-core processor with up to 64GB DDR4 RAM, the TS-1673U-RP features dual 10GbE SFP+ ports and provides two M.2 SATA 6Gb/s SSD slots that allows the greatest flexibility in tiered storage configuration and enables cache acceleration. This powerful hardware can also double the encrypted file transfer performance with AES-NI encryption acceleration. The TS-1673U-RP is designed for small and medium-sized businesses looking for private cloud, cross-platform file sharing and collaboration, efficient backup/restoration, storage for virtualization, and to future-proof their IT infrastructure for 10GbE networks with maximized ROI.
AMD R-Series RX-421ND quad-core CPU with AES-NI encryption acceleration

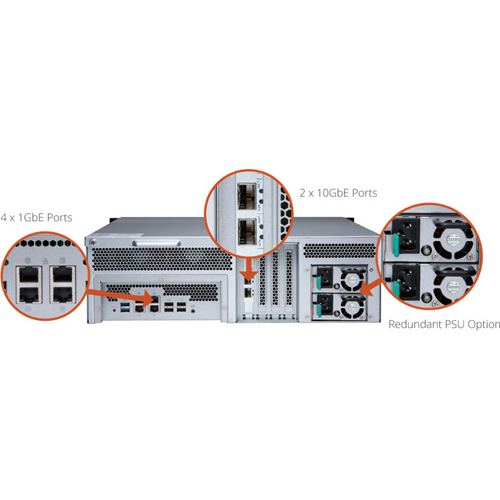

The TS-1673U-RP is equipped with the AMD R-Series RX-421ND quad-core 2.1 GHz CPU (Turbo Core up to 3.4 GHz), dual channel 8GB/16GB/64GB DDR4 RAM (upgradable to 64GB), four 1GbE ports, and a pre-installed dual-port 10GbE network card. With a dual 10GbE configuration, the TS-1673U-RP is capable of delivering up to 1531 MB/s throughput for lightning-fast multi-tasking with low power consumption, while the accelerated encryption engine with AES-NI enables unmatched encryption performance in its class (up to 1305 MB/s with AES 256-bit full NAS volume encryption) to boost system performance, security, and ensuring the confidentiality of sensitive business data stored in the NAS.

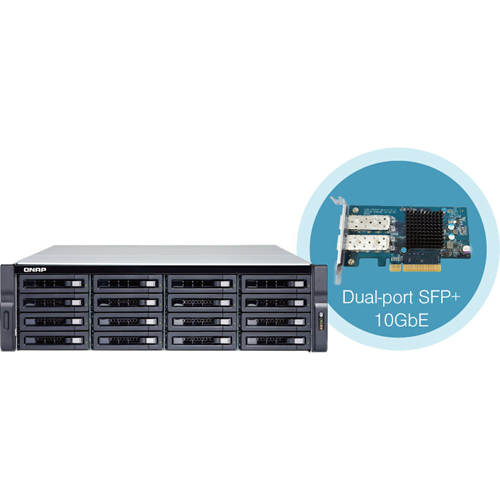

Built-in 10GbE connectivity
The TS-1673U-RP supports 10GbE high-speed networks with an included dual-port 10GbE SFP+ PCIe network adapter, supporting lightning-fast data throughput for businesses that demand higher bandwidth for virtualization and fast backup and restoration for an ever-growing amount of data. It also boosts the productivity of media workflows by enabling on-the-fly high-resolution video editing without needing to transfer videos between the TS-1673U-RP and workstations.
High reliability design ensuring business continuity

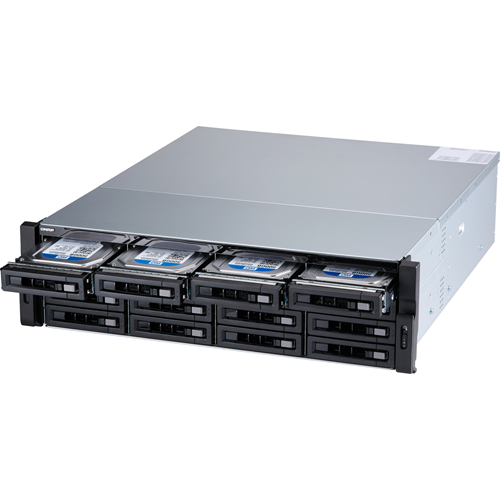

The business-ready TS-1673U-RP is designed to provide 24/7 operations and services. The support for comprehensive RAID configurations and hot-swapping allow for replacing hard drives without service interruption. QNAP's advanced RAID recovery technology also helps if any healthy drives are accidentally removed from a degraded RAID volume. The system can be recovered by reinserting the wrongly-removed hard drives so the data can still be accessible. The TS-1673U-RP delivers high reliability and efficiency with quad LAN support for multiple port-trunking modes including fail-over support. The TS-1673U-RP also features a hot-swappable redundant power supply to ensure maximum system uptime.
Brand Name | QNAP |
Category Type | Storage |
Controller Type | Serial ATA/600 |
Depth | 21.1" |
Ethernet Technology | 10 Gigabit Ethernet |
Expansion Slot Type | SFP+ |
Flash Memory Capacity | 512 MB |
Form Factor | Rack-mountable |
Height | 5.1" |
Limited Warranty | 2 Year |
Model | TS-1673U-RP-16G-US |
Maximum Power Supply Wattage | 500 W |
Memory Technology | DDR4 SDRAM |
Network (RJ-45) | Yes |
Number of 2.5"/3.5" Bays | 16 |
Number of Hard Drives Supported | 16 |
Number of Power Supplies Installed | 2 |
Number of Solid State Drive Supported | 16 |
Number of Total Expansion Bays | 16 |
Number of Total Expansion Slots | 2 |
Number of USB 2.0 Ports | 4 |
Number of USB 3.0 Ports | 2 |
Operating System | QTS 4.3 |
Processor Core | Quad-core (4 Core) |
Processor Manufacturer | AMD |
Processor Model | RX-421ND |
Processor Speed | 2.10 GHz |
Processor Type | R-Series |
Product Line | Turbo NAS |
Product Series | TS-x73U |
Product Type | SAN/NAS Storage System |
Protocols | CIFS/SMB, AFP, AFP 3.3, SMTP, DLNA, FTPS, FXP, LDAP, NFSv3, PPTP, RSync, SMSC, TFTP, Telnet, SSH, SNMP, DHCP, DNS, FTP, TCP/IP, UPnP, Bonjour, SSL/TLS, HTTP, IPv6, HTTPS, DDNS, iSCSI, CIFS, SMB, IPv4, WEBDAV, SFTP |
Rack Height | 3U |
RAID Supported | Yes |
Redundant Power Supply | Yes |
Standard Memory | 16 GB |
Total Number of USB Ports | 6 |
Vendor Name | Qnap |
Weight (Approximate) | 34 lb |
Width | 18.9" |
