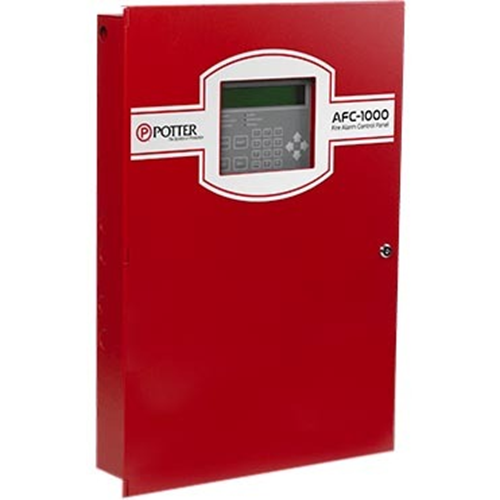

Potter AFC-1000 Fire Alarm Control Panel
Potter AFC-1000 Fire Alarm Control Panel

Potter AFC-1000 Fire Alarm Control Panel

Model: AFC-1000

Category: Fire Control Panels, Addressable Fire Panels

Brand: Potter Electric Signal Co. Us

Dealer pricing

The AFC-1000 is an expandable analog/addressable releasing fire alarm system with a total system capacity of 1270 addresses. Additional capacity on the system is achieved using multi-point SLC modules The control panel utilizes the exclusive Potter protocol that includes a complete line of sensors and modules.

The system is expandable with a total of nine additional addressable Signaling Line Circuits (SLC) each with a maximum of 127 devices. Each SLC may be comprised of any combination of smoke sensor, heat detectors or modules and allows for a total of 50 ohms of impedance and may use any wire compliant with the National Electrical Code (NEC).

Main Features
  • 1,270 addresses available on this analog addressable system
  • Additional system capacity achieved via multi-point SLC modules
  • 1500 software zones
  • NFPA 72 Compliant Smoke Sensitivity Test Built-In
  • System Operates as Class A or Class B for SLC, P-Link and NACs
  • 10 Amp Power Supply, Expandable to 315 amps
  • 6 NACS, Regulated, Rated at 3 Amps each, expandable to 192
  • 4 Input/Output (I/O) Circuits for system flexibility rated at 1 Amp each
  • Strobe Synchronization and System Wide Sync for Gentex®, AMSECO®, Cooper Wheelock® and System Sensor® strobes
  • Dedicated Alarm, Supervisory and Trouble Relays

Battery Built-in Yes
Battery Voltage 27.3 V DC
Brand Name Potter
Category Type Addressable Fire Panels
Certificate Number 6256
Compatibility
Depth 4.4"
Display Screen Type LCD
Display Type LCD
Environmentally Friendly Yes
Ethernet Yes
Features Built-in Keypad
Height 27.3"
Input Voltage 230 V AC, 120 V AC, 120 V AC, 230 V AC
Limited Warranty 5 Year
Manufacturer Potter Electric Signal, LLC
Model AFC-1000
More Ways To Save Hot Deals
Number of Events Log 4000
Panel Control Type Addressable
Plug/Connector Type Hardwired
Product Series 4000, AFC
Product Type Fire Alarm Control/Communicator
Sensor Connectivity Hardwired
Vendor Name Potter Electric Signal Co. Us
Width 18.9"
