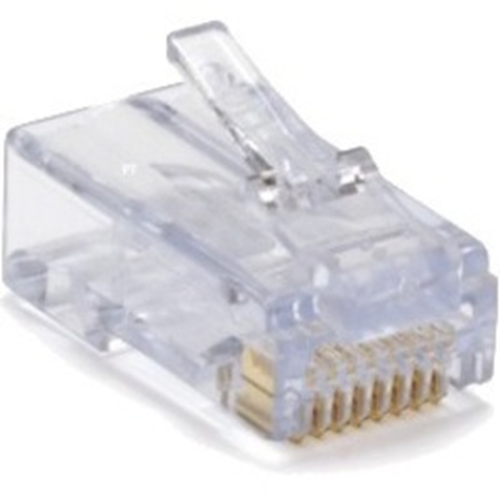

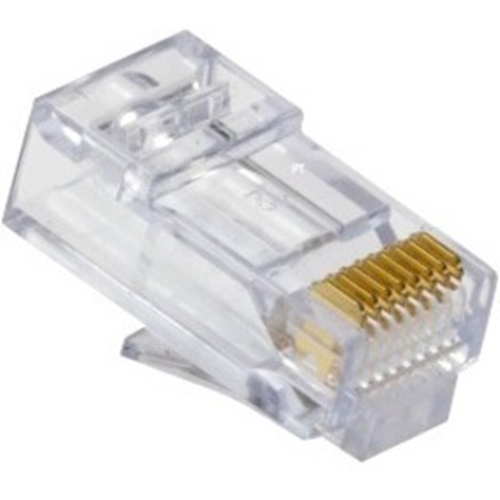

Platinum Tools EZ-RJ45 105003 Cat.5e Connector
Platinum Tools EZ-RJ45 105003 Cat.5e Connector

Platinum Tools EZ-RJ45 105003 Cat.5e Connector

Model: 105003

Category: Category Connectors

Brand: Platinum Tools

Dealer pricing

The Original EZ-RJ45 CAT5e Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician to easily verify the proper wiring order. Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. By reducing the distance between the wire twists and contacts, performance is optimized!

Recommended for Data Applications Only
Rated to 1 Gb

Crimp with one of the EZ-RJ45 Crimp Tools.
*Part Numbers 100062, 100054 or 100004

  • Max Cable Outer Diameter: 0.240" (6.09mm)
  • Max Insulation Diameter (Conductors): 0.040" (1.016mm)
  • Meets ANSI/EIA/TIA/TAA specifications
  • UL Listed E188111, UL94 V-0 and RoHS3/FCC compliant
  • Solid or Stranded, 24 - 23 AWG
  • 50 micron gold plated contacts
  • Color: Clear/Transparent
  • Made in USA

Brand Name Platinum Tools
Category Type Category Connectors
Color Clear, Clear, Transparent, Transparent
Connector Details 1 x RJ-45 Male Network
Connector on First End 1 x RJ-45 Male Network
Connector Plating Gold
Contact Plating Gold
Environmental Certification RoHS, RoHS 3, RoHS, RoHS 3
Environmentally Friendly Yes
Manufacturer Platinum Tools, Inc
Model 105003
Package Type Bulk
Packaged Quantity 500
Product Line EZ-RJ45
Product Type Network Connector
TAA Compliant Yes
Vendor Name Platinum Tools
