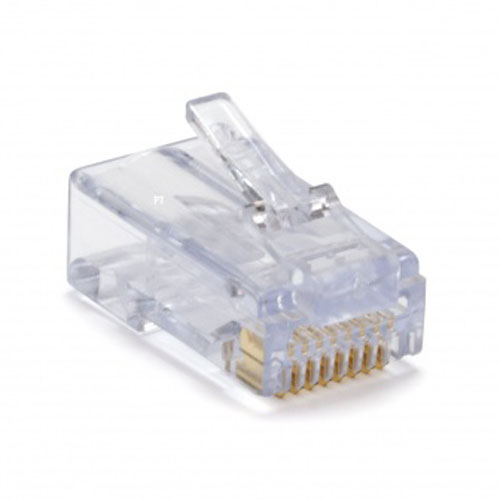

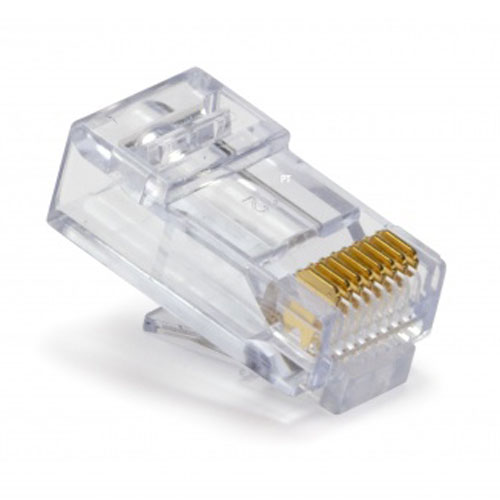

Platinum Tools EZ-RJ45 Cat.6 Network Connector
Platinum Tools EZ-RJ45 Cat.6 Network Connector

Platinum Tools EZ-RJ45 Cat.6 Network Connector

Model: 100009C

Category: Category Connectors

Brand: Platinum Tools

Dealer pricing

The Original EZ-RJ45 CAT6 Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician to easily verify the proper wiring order. Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. By reducing the distance between the wire twists and contacts, performance is optimized!

Main Features

  • Max Cable Outer Diameter: 0.275" (6.98mm)
  • Max Insulation Diameter (Conductors): 0.040" (1.016mm)
  • Meets ANSI/EIA/TIA/TAA specifications
  • UL Listed E188111, UL94 V-0 and RoHS3/FCC compliant
  • Solid or Stranded, 24 - 23 AWG
  • 50 micron gold plated contacts
  • Color: Clear/Transparent
  • Made in USA

Brand Name Platinum Tools
Category Type Category Connectors
Color Clear, Clear, Transparent, Transparent
Connector Details 1 x RJ-45 Network Male, 1 x RJ-45 Male Network
Connector on First End 1 x RJ-45 Male Network
Connector Plating Gold
Connector Type RJ-45 Network - Male
Contact Plating Gold
Environmental Certification RoHS 3, RoHS, RoHS 3, RoHS
Environmentally Friendly Yes
Features Stranded
Manufacturer Platinum Tools, Inc
Model 100009C
Packaged Quantity 10
Product Line EZ-RJ45
Product Type Network Connector
TAA Compliant Yes
Vendor Name Platinum Tools
