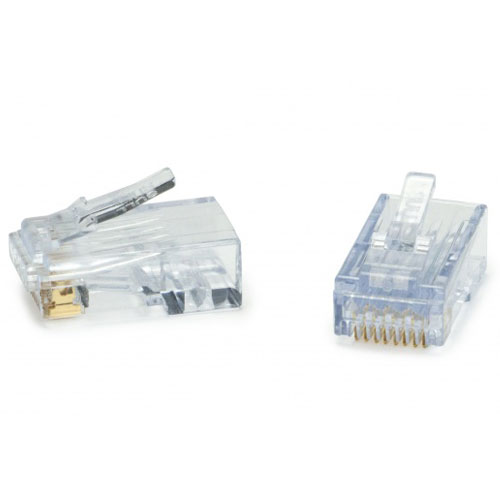

Platinum Tools ezEX 44 - ezEX-RJ45 Connector
Platinum Tools ezEX 44 - ezEX-RJ45 Connector

Platinum Tools ezEX 44 - ezEX-RJ45 Connector

Model: 202044J

Category: Wire Termination Tools, Category Connectors

Brand: Platinum Tools

Dealer pricing

The patented ezEX44 connectors feature a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with Cat6 (Sm. Cat6A) cabling and is recommended for PoE/PoE+ and Data applications. The termination tool for these connectors is the EXO Crimp Frame and EXO-EX Die (100061C).

Main Features
  • Hi-Lo stagger to isolate each conductor
  • Simple one piece/pass through design, no bars or liners
  • Insulation Diameter (Conductor) Size range: .039” – .044” (1.0 –1.12mm)
  • Max Outer Diameter: .290” (7.36mm)
  • 50 micron gold plated contacts
  • 5e/6/6A compliant
  • Solid or Stranded 24-22 AWG
  • TIA, TAA, RoHS, UL & FCC compliant
  • Typically used with Cat6 (Sm. Cat6A)
  • Made in the USA

Brand Name Platinum Tools
Category Type Category Connectors
Connector Details 1 x RJ-45 Male Network, 1 x RJ-45 Network Male
Connector on First End 1 x RJ-45 Male Network
Connector Type RJ-45 Network - Male
Environmental Certification RoHS 2
Environmentally Friendly Yes
Features Stranded
Manufacturer Platinum Tools, Inc
Model 202044J
Packaged Quantity 100
Product Line ezEX
Product Series 100
Product Type Network Connector
Vendor Name Platinum Tools
