Platinum Tools ezEX-RJ45 CAT6 Connector
Platinum Tools ezEX-RJ45 CAT6 Connector

Platinum Tools ezEX-RJ45 CAT6 Connector

Model: 100028C

Category: Wire Termination Tools, Category Connectors

Brand: Platinum Tools

Dealer pricing

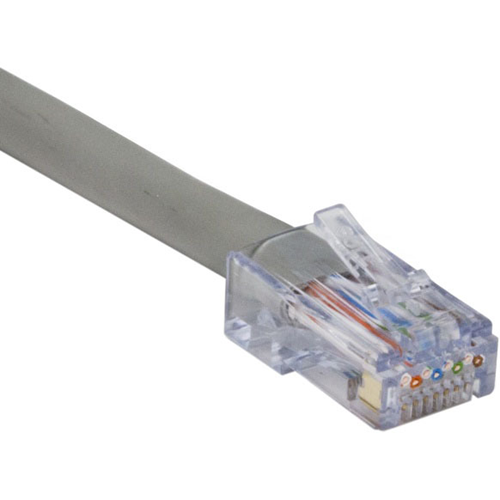

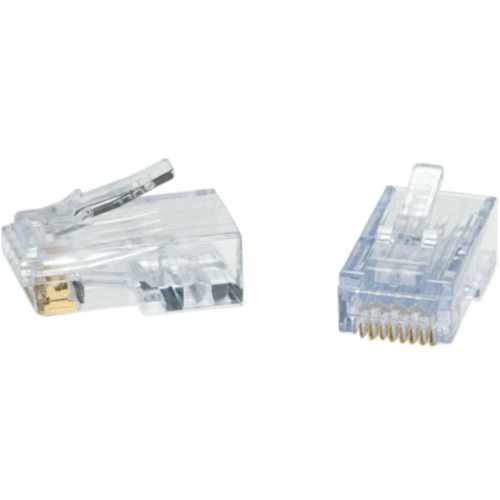

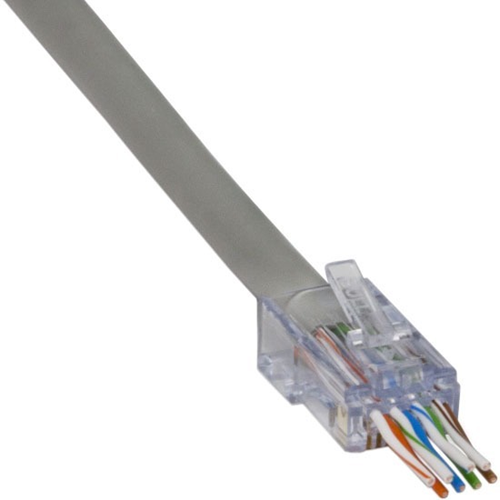

This RJ45 connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows 'big' conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with Cat6 and is terminated with EXO Crimp Frame® and EXO-EX Die™ (100061C).

Main Features

  • Hi-Lo stagger to isolate each conductor
  • Simple one piece/pass through design, no bars or liners
  • Insulation Diameter (Conductor) Size range: .039" - .044" (1.0 -1.12mm)
  • Max Outer Diameter: .290" (7.36mm)
  • 50 micron gold plated contacts
  • 5e/6/6A compliant
  • Solid or Stranded 24-22 AWG
  • TIA, TAA, RoHS, UL & FCC compliant
  • Typically used with Cat6
  • Made in the USA

Brand Name Platinum Tools
Category Type Category Connectors
Connector Details 1 x RJ-45 Network Male, 1 x RJ-45 Male Network
Connector on First End 1 x RJ-45 Male Network
Connector Plating Gold
Connector Type RJ-45 Network - Male
Contact Plating Gold
Environmental Certification RoHS 2, RoHS, RoHS 2, RoHS
Environmentally Friendly Yes
Features Stranded
Manufacturer Platinum Tools, Inc
Model 100028C
Packaged Quantity 50
Product Line ezEX
Product Type Network Connector
TAA Compliant Yes
Vendor Name Platinum Tools
