Peerless Articulating LCD Wall Arm
Peerless Articulating LCD Wall Arm

Peerless Articulating LCD Wall Arm

Model: SA740P

Category: Wall Mounts

Brand: Peerless Industries

Dealer pricing

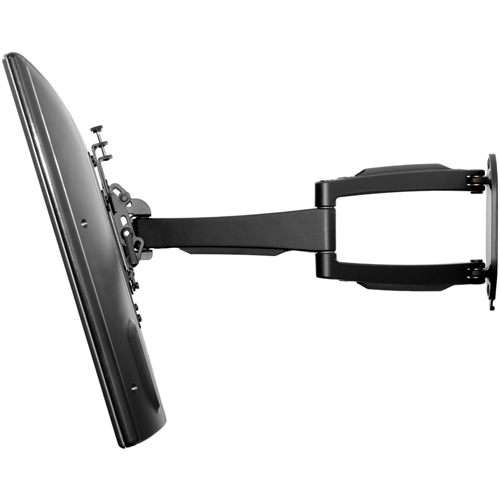

The SmartMount® Articulating Wall Mount series offers the most versatile installation features and mounting options. Vertical adjustment ability allows for post installation leveling, making it easier than ever to find the perfect display position. With SA740P, extend the display up to 21.8" (554mm) or fully-retract it to just 3.3" (77mm) from the wall for the perfect viewing position. The display can now simply be installed by a single person with the Hook-and-Hang™ system. One-Touch™ tilt technology offers +15°/-5° vertical tilt movement for the ideal viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.

Main Features
  • Includes all necessary wall and display attachment hardware
  • Design is UL listed and tested to four times stated load capacity
  • Retracts to hold display just 3.03" (77mm) from the wall
  • 90 degrees of pivot allows for perfect display positioning
  • Easy leveling 5° after display installation
  • Quick and easy, Hook-and-Hang? one-person installation
  • Landscape or Portrait mounting options increases display versatility

Brand Name Peerless-AV
Category Type Wall Mounts, Retail & Hospitality, House of Worship, Corporate & Telework, Education
Certifications & Standards

UL
Color Black
Compatibility

22" to 43" LCD Screens
Depth 10.1", 12.5"
Device Supported Flat Panel Display
Environmental Certification RoHS
Environmentally Friendly Yes
Features Adjustable Viewing Angle, Cable Management, Hook-and-Hang Design, Retractable, Vertical Tilt
Finishing High Gloss
Height 43", 12.5", 4.3"
Limited Warranty 5 Year
Manufacturer Peerless Industries, Inc
Model SA740P
Material Anodized Aluminum, Steel, Anodized Aluminum, Steel
Maximum Load Capacity 80 lb
Maximum Screen Size Supported 43"
Minimum Screen Size Supported 22"
Number of Displays Supported 1
Packaged Quantity 1
Product Line SmartMount
Product Type Mounting Arm
Screen Size Class 22"
Vendor Name Peerless Industries
VESA Mount Standard 100 x 100, 200 x 100, 200 x 200
Weight (Approximate) 7.27 lb, 7.90 lb
Width 4.3"
