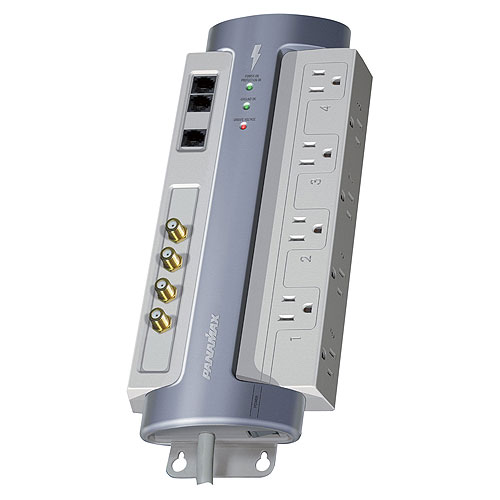

Panamax PM8-AV Line Conditioner
Panamax PM8-AV Line Conditioner

Panamax PM8-AV Line Conditioner

Model: PM8-AV

Category: AV Power

Brand: Panamax

Dealer pricing

Improves Picture and Sound Quality: the PM8-AV’s Power Cleaning and Filtration eliminate common symptoms of contaminated power (including loss of detail, pops, hisses, hums and visual artifacts) and allows your A/V equipment to perform up to its full capability.

Surge Protection: exclusive Protect or Disconnect™ circuitry. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.

Safety: engineered and built to meet the latest UL Safety requirements (UL 1449 3rd Edition)

Main Features

  • Cable/Sat Protection
  • Protects equipment from electrical surges that travel over cable, satellite, and antenna lines.
  • Telephone Line Protection
  • Protects equipment from electrical surges that travel over telephone lines.
  • 8 Outlets
  • Eight (8) filtered and surge protected outlets.
  • Surge Protection
  • Exclusive Protect or Disconnect™ circuitry. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.
  • Hi Def Ready
  • Hi-Def Designed to work with your High Definition system.

Brand Name Panamax
Depth 1.9", 12"
Frequency 50 Hz, 60 Hz
Height 12"
Input Voltage 120 V AC
Limited Warranty Lifetime
Load Capacity (Watt) 1800 W
Model PM8-AV
Maximum Frequency 60 Hz
Maximum Line Current 15 A
Maximum Operating Range 5"
Minimum Frequency 50 Hz
Number of +12V Rails 8
Output Voltage 120 V AC
Power Rating 1800 W
Product Type Line Conditioner
Protection Type AC Noise, AC Surge, Spike, Lightning, EMI / RFI, Over Voltage, Neutral to Ground, Line to Ground, Hissing, Popping, AC Noise, AC Surge, EMI / RFI, Hissing, Lightning, Line to Ground, Neutral to Ground, Over Voltage, Popping, Spike
Receptacles Detail 8
Surge Energy Rating 1125 J
Vendor Name Panamax
Weight (Approximate) 2.20 lb
Width 5"
