Optex SmartLine SL-200QN Photoelectric Beam Detector
Optex SmartLine SL-200QN Photoelectric Beam Detector

Optex SmartLine SL-200QN Photoelectric Beam Detector

Model: SL-200QN

Category: Space/Perimeter Protection, Photo Beams

Brand: Optex

Dealer pricing

The new SL-200QN includes even more features to protect against false and missed alarms caused by mis-alignment and environmental issues. With 200ft. of outdoor detection range, the QN model is perfect for mid level security perimeter applications. New features include:

Quad beam - Dramatically cuts down on false alarms caused by birds and falling leaves

Sniper ViewFinder and aligmnet dial - The new telescope lens on the SL Series has a high level of visibility for optical alignment work. Even at 200ft., a perfect installation and stable performance can be achieved in minimal time.

BAU-4 Compatible - The BAU-4 beam alignment unit automatically and accurately adjusts the optical access. This allows peak performance and gives one technician the ability to align a 200ft to 650ft SL detector with only one tech.

Applications

  • Perimeter
  • Roof / Ceiling
  • Garden
  • Driveway

Main Features

  • High grade aspherical lenses
  • Two "easy-alignment" tools
  • Non-stackable model

Beam Configuration Quad Beam
Brand Name Optex
Category Type Photo Beams
Connectivity Technology Cable

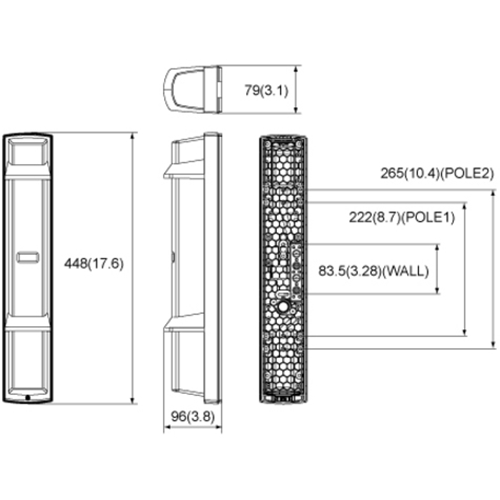

Depth 3.8"
Features Water Proof, Anti-frost System, Dust Proof, Water Proof, Dust Proof, Anti-frost System
Form Factor Wall Mountable, Pole-mountable, Pole-mountable, Wall Mountable
Height 17.6", 3.8", 3.1"
Input Current 40 mA
Input Voltage 10.5 V DC, 10.5 V DC, 30 V DC, 30 V DC
Manufacturer Optex, Inc
Model SL-200QN
Material Polycarbonate
Maximum Outdoor Detection Range 200 ft
Number of Channels 4
Packaged Quantity 4
Power Source AC Supply
Product Line SmartLine
Product Series SL-QN
Product Type Photoelectric Beam Detector
Vendor Name Optex
Weight (Approximate) 5.29 lb
Width 17.6", 3.1"
