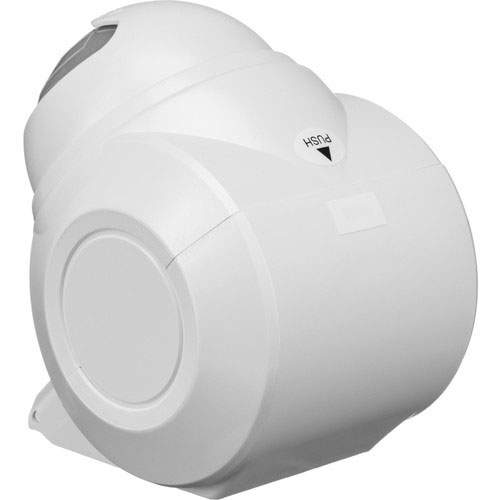

Optex TD-20U Motion Sensor

Model: TD-20U

Category: Wireless PIRs

Brand: Optex

Dealer pricing

This driveway sensor is backwards compatible meaning it will work with all of the original Optex Wireless 1000 components as well as the new Optex Wireless 2000 components. The built-in infrared sensor and wireless transmitter are capable of sending an alarm signal up to 2000 feet back to either Optex RC-10 or the RC-20 receivers which will then notify you through a pleasant chime sound.

The infrared sensor has two settings for the infrared sensor: fan and long range beam. The fan setting is perfect for door and entrance ways or even as a motion sensor mounted the corned of a room. The beam setting will monitor up to 50 feet in front of the sensor making it ideal for wide driveways, parking lots or even as a perimeter sensor for your property.

  • Description: Indoor/Outdoor Sensor transmitter
  • Detection Method: Passive infrared
  • Detection Range: 50ft (15m) long range or 17ft (5m) fan pattern
  • Detection Angle: 90° vertically & ±5° horizontally or ±5° vertically & 90° horizontally
  • Power Source: 9V alkaline battery (not included)
  • Battery Life: Approx. 2yrs
  • Visible Indicator: Red LED
  • Transmission Frequency: 418MHz
  • Transmission Range: 2000ft (line of sight)
  • Operating Temperature: 15°F~120°F (-20°C~+50°C)
  • Water Resistance: IP54
  • Suitable for use: Outdoor/Indoor
  • Weight: 6.3oz (180g)
  • Accessories: Mounting screw × 2

Brand Name Optex
Category Type Wireless PIRs
Environmentally Friendly Yes
Limited Warranty 2 Year
Manufacturer Optex, Inc
Model TD-20U
Maximum Motion Sensing Distance 50 ft
Maximum Operating Distance 50 ft
Minimum Motion Sensing Distance 17 ft
Passive Infrared Sensor (PIR) Yes
Product Series 2000
Product Type Motion Sensor
Vendor Name Optex
Wireless Technology Infrared
