Nascom 3' Track Mount Flip Switch With Universal Magnet

2.25 RAILMNTFLIPCLRX/36 AC

Model: N505AUTM/ST036

Category: Recessed Contacts

Brand: Nascom

Dealer pricing

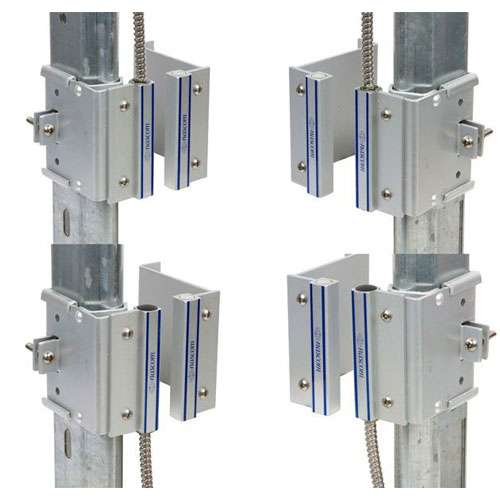

Nascom's N505AUTM 3" TRACK MOUNT FLIP SWITCHTM with universal magnet handles commercial and industrial overhead door applications.

The TRACK MOUNT FLIP SWITCHTM combines the installers' choice of contact configuration with an N35 grade NdFeB magnet for maximum gap performance.

The closed loop versions of the N505AUTMC prevent false alarms caused by the up and down movement of overhead doors with our unique NO DEAD SPOT technology. The switch can be mounted with the cable in either direction, without loss of gap.

FEATURES

  • No Dead Spot Technology
  • Extruded Annodized (type Ii) Aluminum
  • Quick Switch Nstall - Less Than 60 Seconds
  • Flip The Switch - Gap Is Not Impacted By Cable Direction
  • Universal Mount
  • 24" Stainless Steel Armored Cable Lead Protection
  • 36" 22awg Wire Leads
  • Listed To Ul634 Standard

ADI Part Number J8-N55UTMT3
Application/Usage Door, Commercial, Industrial
Brand Name Nascom
Certifications & Standards UL634 Standard
Color Silver
Connectivity Technology Cable
Contact Configuration N.O.
Contact Resistance 150000 Micro Ohm
Contact Type Closed Loop
Diameter 0.87"
Features NO DEAD SPOT Technology, Universal Mount
Input Voltage 200 V DC
Length 2.75"
Magnet Type Permanent Magnet
Model N505AUTM/ST036
Material Anodized Aluminum, Neodymium
Maximum Line Current 1.50 A
Mounting Type Overhead, Track Mount
Product Series N505AUTMC
Product Type Magnetic Contact
Rack Depth 36"
Termination Style Wire Leads
