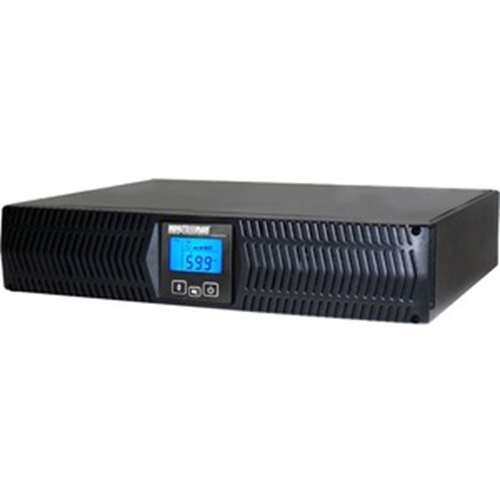

Minuteman Endeavor ED1000RTXL2U 1000VA Tower/Rack/Wall Mountable UPS
Minuteman Endeavor ED1000RTXL2U 1000VA Tower/Rack/Wall Mountable UPS

Minuteman Endeavor ED1000RTXL2U 1000VA Tower/Rack/Wall Mountable UPS

Model: ED1000RTXL2U

Category: Uninterrupted Power Supplies

Brand: Minuteman / Para Systems

Dealer pricing

Endeavor® LCD On-line Uninterruptible Power Supply
In today's 24/7, "always on" business world, downtime is a not an option. Minuteman's Endeavor LCD Series products are engineered to provide the best features that demanding users require for supporting critical applications, while also offering unmatched reliability in a true on-line UPS. This premium-level product provides a sinewave output and is backed with the industry's first comprehensive 5-year warranty, including parts, labor and batteries.

The Endeavor LCD Series delivers continuous power conditioning through Minuteman's double conversion on-line technology, providing emergency backup power with zero transfer time. For extended runtime applications, these products allow the connection of optional external battery packs for long backup times required in certain applications, along with being generator friendly.

The Endeavor LCD Series is designed to protect servers, data storage, switches, and routers used in data centers or network closets, DAS and small cell systems, light industrial applications, telecom and VOIP systems, plus security systems.

Offering premium protection that meets critical application needs, users can confidently rely on Minuteman's Endeavor LCD Series to provide complete power protection when reliability really matters.

Main Features
  • True on-line, double-conversion technology
  • Compact case design, (only 2U for all models), for high-density rack installations
  • Flexible installation format: Rack/Tower or Wall (with an optional install kit)
  • Rackmount ears come attached to UPS
  • Easy-to-read LCD display
  • 0.9 output power factor
  • Highly-efficient, Economy Mode option
  • Output receptacle control with three load banks
  • Independent Battery Bypass - allows the UPS to provide voltage regulation and spike/surge protection either with dead batteries or without batteries
  • Hot-swappable battery replacement

Application/Usage VoIP Phone System, Network Closet, Security System, Network, Distributed Antenna System (DAS), Network, Network Closet, Security System, VoIP Phone System
Backup/Run Time (Full Load) 3 Minute
Brand Name Minuteman
Category Type Uninterrupted Power Supplies
Depth 3.5"
Energy Star Yes
Environmental Certification RoHS 2, TÜV Rheinland, cTUVus, cTUVus, RoHS 2, TÜV Rheinland
Environmentally Friendly Yes
Form Factor Tower/Rack/Wall Mountable
Height 3.5"
Hot Swappable Yes
Input Voltage 120 V AC
Input Voltage Range 0 V AC 160 V AC, 0 V AC - 160 V AC
Limited Warranty 5 Year
Load Capacity 1000 VA/900 W
Manufacturer Para Systems, Inc
Model ED1000RTXL2U
Network (RJ-45) Yes
Output Voltage 120 V AC
Plug/Connector Type NEMA 5-15P
Product Line Endeavor
Product Type Dual Conversion Online UPS
Rack Height 2U
Rack Width 19"
Receptacle Detail 8 x NEMA 5-15R
Receptacle Type NEMA 5-15R
Vendor Name Minuteman/para Systems
Waveform Type Sine Wave
Weight (Approximate) 29.30 lb
Width 19"
