Model: PD-920R-NS
Category: AV Rackmount Accessories
Brand: Middle Atlantic - U.s.

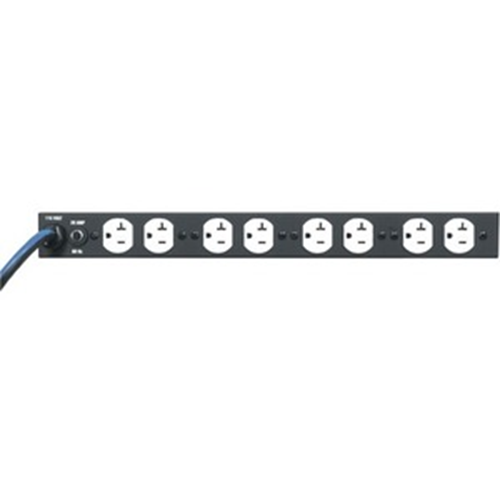

Dealer pricingThe PD-920R rackmount power distribution unit is equipped with 8 circuit breaker protected rear outlets (NEMA 5-20R), and one front outlet (NEMA 5-15R). Standard equipment includes surge and spike protection that utilize a clean line to neutral that does not pass noise contamination to ground (PD-920R-NS does not have this protection), EMI filtering, and a 9' cord. A generous 9" depth offers easy access to the 20 amp rear panel outlets, which are solidly mounted on yokes to eliminate deflection. An illuminated combination power switch/circuit breaker is located on the front panel. UL listed in the US and Canada. Occupies one rackspace. The PD-920RC-20 shares all of the same features as the PD-920R, but boasts a generous 20' cord.
| ADI Part Number | NO-PD920RNS |
| Brand Name | Middle Atlantic |
| Color | Black Powder Coat |
| Cord Length | 9 ft |
| Environmental Certification | EU RoHS, GREENGUARD |
| Environmentally Friendly | Yes |
| Form Factor | Rack-mountable |
| Input Voltage | 120 V AC, 115 V AC |
| Limited Warranty | 3 Year |
| Manufacturer | Legrand Group |
| Model | PD-920R-NS |
| Number of +12V Rails | 8 |
| Output Current | 20 A |
| Plug/Connector Type | NEMA 5-20P |
| Product Series | PD-920 |
| Product Type | PDU |
| Rack Height | 1U |
| Rack Width | 19" |
| Receptacle Detail | 1 x NEMA 5-15R, 8 x NEMA 5-20R |
| Receptacle Type | NEMA 5-15R, NEMA 5-20R |
| Weight (Approximate) | 8.87 lb |
| Width | 8.8", 1.8" |
