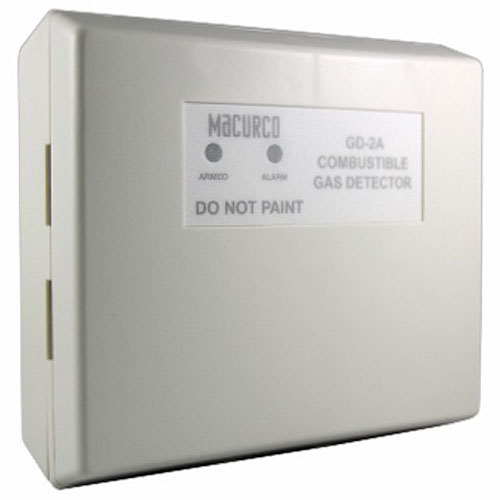

Macurco GD-2A Gas Leak Sensor
Macurco GD-2A Gas Leak Sensor

Macurco GD-2A Gas Leak Sensor

Model: 70-0715-6468-9

Category: Fire Detection Devices, Carbon Monoxide, Gas (Non-CO)

Brand: Macurco (aerionics)

Dealer pricing

The Macurco Security Series are reliable, lightweight and aesthetically pleasing gas detectors made to keep you and the people you care about safe from harmful gases in residential and light commercial applications. The Macurco CM-E1, GD-2B, GD-2A and HD-11 are low voltage gas detectors designed for use with fire and security systems. The CM-E1 and GD-2A are UL 2075 Listed for use in residential and commercial applications and are also approved by the California State Fire Marshal.

Main Features

  • Detects Natural Gas (NG) or Propane (LP)
  • Low replacement costs with long life sensors
  • Low maintenance with no calibration needed
  • Aesthetically pleasing
  • Ties into any Fire/Burglary panel for local and remote monitoring
  • Made in America

Specs

  • Can be mounted on a double gang box
  • Dimensions: 4.5”(H) x 5”(L) x 1.62”(W)
  • Voltage: 9-32 VDC or 12-24 VAC
  • Sensor Life: 7 to 10 years
  • Alarm Relay: .125 A, 40 V, 3 VA
  • Trouble Relay: .250 A, 40 V, 10 VA
  • Status Indicators :LED (Red alarm, green normal)
  • Alarms: Per UL 1484, 25% LEL
  • UL 2075 Listed. Tested to 1484 standard for residential gas detectors

Application/Usage Kitchen, Institutional Building, Kitchen, Office Building, Retail Store, Office Building, Institutional Building, Retail Store
Brand Name Macurco
Category Type Carbon Monoxide
Color White
Detectable Gas Natural Gas, Propane, Propane, Natural Gas
Detectable Medium Gas
Form Factor Surface Mount
Input Voltage 24 V DC
Manufacturer Aerionics, Inc
Model 70-0715-6468-9
Material Plastic
Packaged Quantity 1
Product Functions Alarm
Product Type Gas Leak Sensor
Status Indicators Alarm
Vendor Name Macurco (aerionics)
