DVP-1200-4 Control Panel, 192 Modbus Inputs, 8 Rlys
DVP-1200-4 Control Panel, 192 Modbus Inputs, 8 Rlys

DVP-1200-4 Control Panel, 192 Modbus Inputs, 8 Rlys

Model: 70-0714-0315-4

Category: Conventional Fire Panels

Brand: Macurco (aerionics)

Dealer pricing

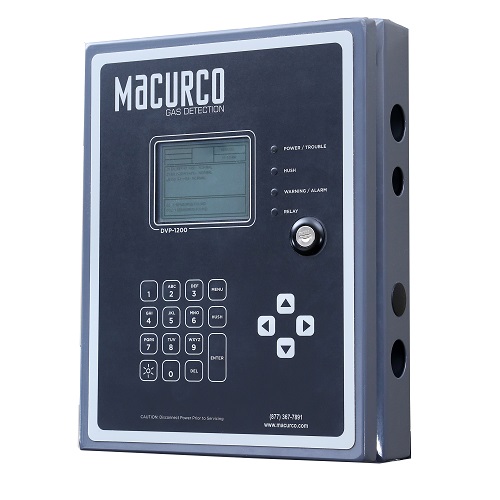

The Macurco DVP-1200 control panel offers an expandable system with up to 192 addressable detectors in the field. The DVP-1200 comes standard with four relays, as well as expandable onboard relay options (+2, +4). Other outputs on the DVP-1200 include three analog outputs, four 24VDC drivers, and BACnet IP. The DVP-1200 can be connected to up to two remote relay boxes with each remote relay box containing two relays. ETL Listed

The Macurco controller family has a variety of options to meet the needs of your facility. These controllers in conjunction with Macurco gas detectors provide automatic control to help maintain an acceptable environment in parking garages or other applications. These systems are easily configured making installation hassle-free. The control panel series is designed to meet specifications for safety in enclosed parking garages, including the Uniform Building Code and OSHA 50ppm CO requirements. With multiple control panel options Macurco will help you find the right controller for your specific application.

Main Features
  • 192 digital channels
  • 90-250 VAC input
  • Up to 12 relays, Standard with four onboard relays • Up to four optional onboard expansion relays (+2 or +4), Can be connected to two remote relay boxes (two relays in each box)
  • BACnet IP (ethernet connection)
  • (4) 24VDC outputs for alarm, trouble, remote notification
  • (3) 4-20mA outputs for VFD control
  • Coverage Area: Up to 960,000 sq. ft.
  • Compatible with all Macurco 6-Series gas detectors
  • Meets the Uniform Building Code and OSHA 50ppm CO requirements. (Enclosed Parking Garages)
  • Made in America

ADI Part Number MA-DVP12004
Brand Name Macurco (aerionics)
Category Type Conventional Fire Panels
Model 70-0714-0315-4
Vendor Name Macurco (aerionics)
