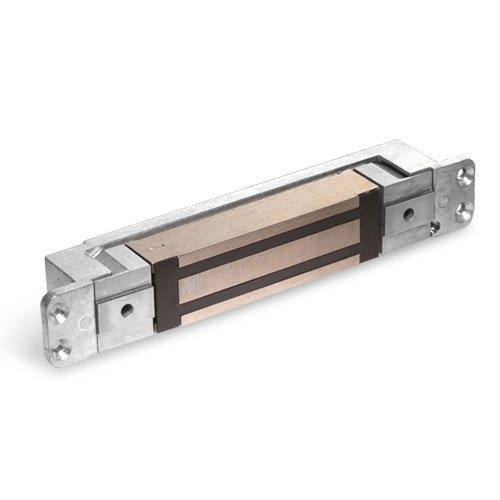

Locknetics MagForce GF3000BRD Magnetic Lock

The GF3000 Series electromagnetic shear locks are available in mortise mount or low profile surface mount options. Both feature superior hold force with advanced microprocessor controlled electronic features including auto sensed voltage, auto relocking, adjustable relock time delay and options for integrating into an access control system.

The mortise shear lock offers the advantage of a totally concealed locking mechanism, providing superior security and appearance while allowing for normal door movement. The patented design incorporates locking tabs on the magnet assembly with mating grooves in the armature plate. The surface mounted model provides powerful hold force in a low profile design.

All Schlage electromagnetic locks come with a limited lifetime warranty on the magnetic coil assembly for added confidence in the longevity of these robust products.

Applications

• Maximum security: 3000 lb. rated hold force
• Surface mounted shear locks for inswinging and outswinging doors
• Mortise mounted shear locks for top and bottom door or rail installation

Installation

• Automatic voltage selection (AVS) for 12 and 24 VDC
• Able to jump a 1/4" gap - no in-rush current

Features

• Microprocessor controlled
• Adjustable relocking time delay 0-30 seconds
• Low temperature operation allows mortise mount use on wood frames
