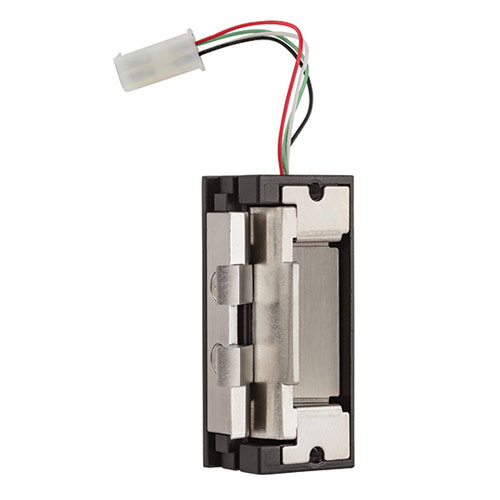

Electric Strike .No Cut 450.Cyl.Std.1224.Us32d
Electric Strike .No Cut 450.Cyl.Std.1224.Us32d

Electric Strike .No Cut 450.Cyl.Std.1224.Us32d

Model: NC450

Category: Electric Strikes

Brand: Locknetics / Schlage

Dealer pricing

The no cut electric door strike can be used to convert cylindrical lock sets into an electronic access controlled locking system. No cutting on the frame is required. Simply adjust the vertical alignment feature to the latch bolt centerline and install.

Features and benefits

  • No frame cutting is required
  • Low profile
  • Field selectable fail-safe and fail-secure (fail- secure default) with simple and easy screw reversal
  • Two face plates included: Radius and square edge stainless steel (4 7/8" x 1 ¼")
  • Field selectable 12/24 VDC
  • Voltage spike suppressor included
  • Suitable for rain or dust environment

Application/Usage Door
Brand Name Locknetics/schlage, Locknetics
Category Type Electric Strikes
Certifications & Standards UL Certified
Color Satin Stainless Steel
Compatible Door Frame Type Aluminum, Metal, Wood
Compatible Door Lock Type Cylindrical, Mortise
Electric Strike Assembly Body with Faceplate
Features Burglary Resistant, Buzzer, Latchbolt Monitor
Holding Strength 1500 lb
Input Current 150 mA, 300 mA
Input Voltage 12 V DC, 24 V DC
Manufacturer Allegion plc
Model NC450
Number of Users 250000
Product Series NC
Product Type Electric Strike
Security Configuration Fail Secure
Vendor Name Locknetics / Schlage
