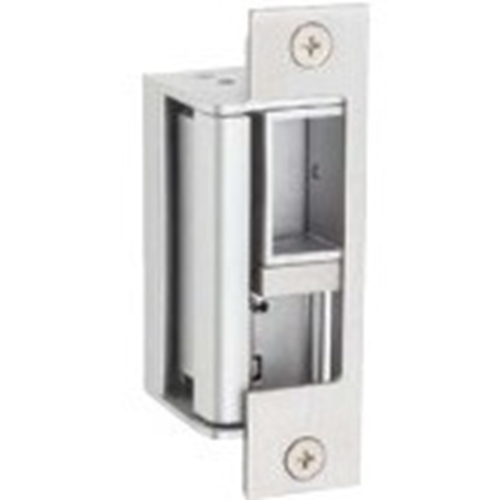

Locknetics CS 450 Electric Strike
Locknetics CS 450 Electric Strike

Locknetics CS 450 Electric Strike

Model: CS450 US32D

Category: Electric Strikes

Brand: Locknetics / Schlage

Dealer pricing

The low, versatile profile CS Series of electric strikes are designed for use with cylindrical locksets and select mortise locksets without deadbolt for both metal and wood door frames.
Main Features
  • Low profile
  • Field selectable fail-safe and fail-secure (fail-secure default), with simple and easy screw reversal
  • Included trim piece for installation flexibility and improved appearance
  • Mounting tabs included for aluminum frame installation
  • Two faceplates included: Radius and square edge stainless steel (4 7/8" x 1 1/4")
  • Field selectable 12/24 VDC
  • Voltage spike suppressor included
  • Suitable for rain or dust environment

Brand Name Locknetics
Category Type Electric Strikes
Certifications & Standards UL Certified
Compatible Door Frame Type Metal, Wood, Metal, Wood
Compatible Door Lock Type Cylindrical, Mortise, Mortise, Cylindrical
Duty Cycle 250000 Cycles
Electric Strike Assembly Body with Faceplate
Features Burglary Resistant, Latchbolt Monitor, Surface Mount, Surface Mount, Latchbolt Monitor, Burglary Resistant
Holding Strength 1500 lb
Input Current 300 mA, 150 mA, 150 mA, 300 mA
Input Voltage 24 V DC, 12 V DC, 24 V DC, 12 V DC
Manufacturer Allegion plc
Model CS450 US32D
Number of Users 250000
Product Series CS
Product Type Electric Strike
Security Configuration Fail Secure
Strength Type Static Strength
Vendor Name Locknetics / Schlage
