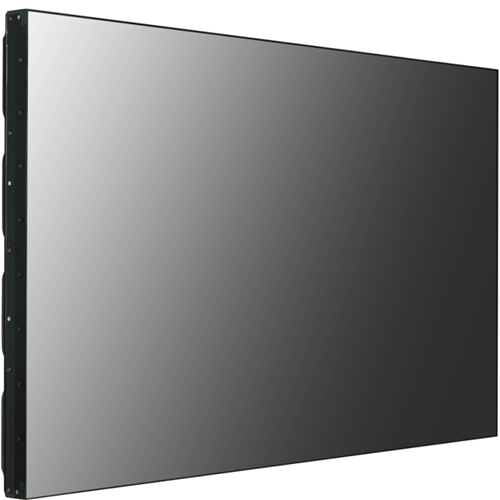

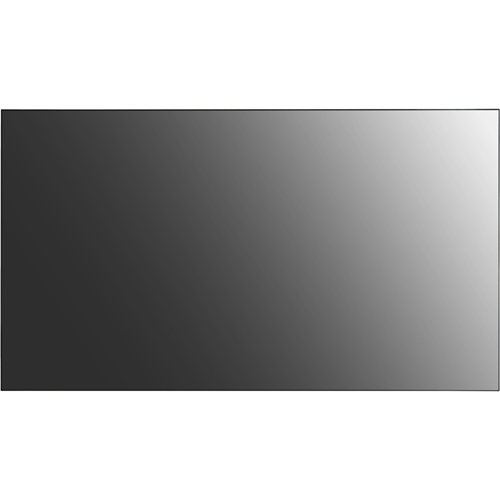

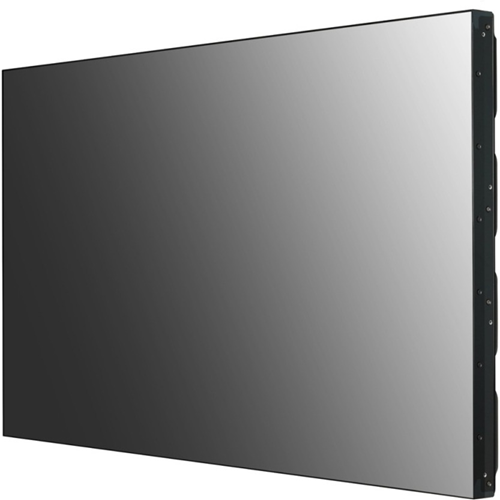

LG 49VL5F-A Digital Signage Display

Model: 49VL5F-A

Category: Commercial-Grade TV (with tuner)

Brand: Lg Electronics

Dealer pricing

Incredible Immersion with Ultra-Narrow Bezel

The 49VL5F provides all-encompassing screen immersion thanks to its ultra-narrow 3.5 mm bezel-to-bezel, while its outstanding IPS panel delivers a clear image from any angle. With its extremely attractive and highly functional design, it can be used to deliver advertising and information in a variety of business environments.

Achieving Incredible Immersion

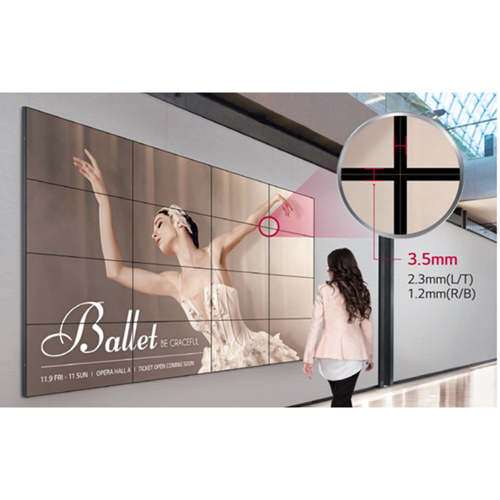

Seamless Large Screens with Ultra-Narrow Bezel

The ultra-narrow bezel creates a visually stunning digital wall to effectively deliver dynamic content and immerse the viewers. The large screen it generates is enough to captivate the attention of passersby.

Achieving Incredible Immersion

Image Gap Reduction

The 49VL5F includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

Vivid and Dynamic Picture Quality

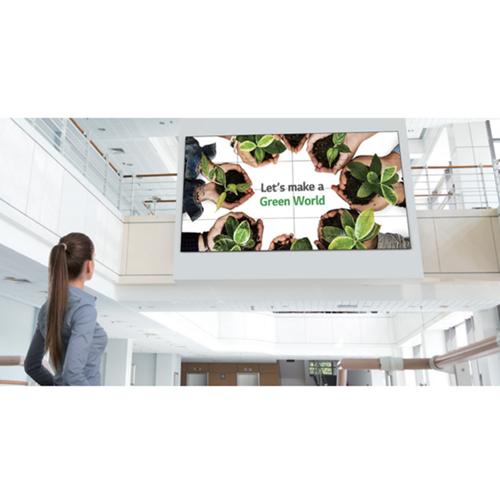

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the 49VL5F is high enough to display vivid colors throughout the screen with no distortion.

Vivid and Dynamic Picture Quality

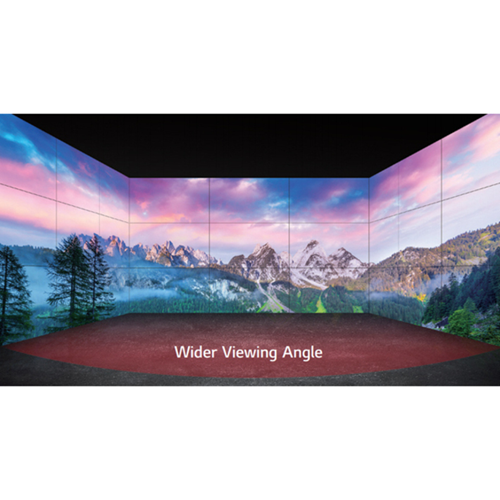

Wider Viewing Angle

It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the 49VL5F captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.

User Convenience

Easy Color Adjustment

Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

User Convenience

Simple White Balance Adjustment

In conventional video walls, white balance was adjustable only in "full-white" mode, but the 49VL5F allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

User Convenience

User-Friendly Menu Structure

The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-anderror when exploring desired functions and managing displays.

User Convenience

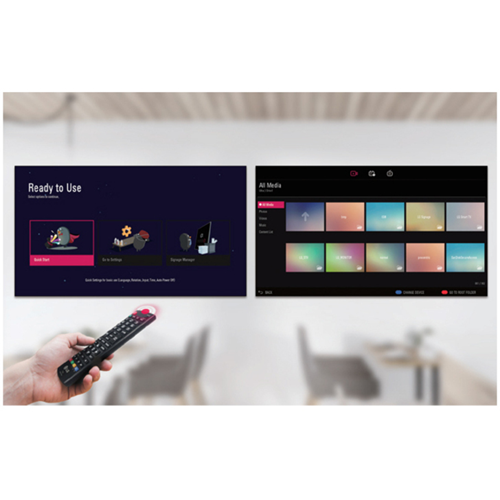

Intuitive GUI

The GUI(Graphic User Interface) is carefully designed with a four-way navigation remote control that lets users easily switch to other settings. Also, it adopts a larger font for better visibility, which is necessary when users want to control displays from relatively far distances.

Main Features
  • Brightness(Typ.) : 450 cd/m²
  • Bezel : 2.25 mm (T/L), 1.25 mm (B/R)
  • Depth : 89.7 mm
  • Interface : HDMI/DP/DVI-D/USB/ RS232C/ RJ45/ Audio/ IR

Backlight Technology LED
Bezel Width (Bottom) 47.2 mil
Bezel Width (Left) 90.6 mil
Bezel Width (Right) 47.2 mil
Bezel Width (Top) 90.6 mil
Brand Name LG
Brightness 450 Nit
Category Type Commercial-Grade TV (with tuner), Corporate & Telework, Education, House of Worship, Retail & Hospitality
Depth 3.5"
Display Resolution 1920 x 1080
Display Screen Type LCD
DVI Yes
Energy Star Yes
Environmental Certification ENERGY STAR 7.0
Environmentally Friendly Yes
Ethernet Yes
HDMI Yes
Height 23.9"
Input Voltage 120 V AC, 230 V AC
Limited Warranty 2 Year
Model 49VL5F-A
Product Series 49VL5F
Product Type Digital Signage Display
Scan Format 1080p
Screen Size 49"
Serial Yes
USB Yes
Vendor Name Lg Electronics
VESA Mount Standard 600 x 400
Video Wall Compatible Yes
Weight (Approximate) 39.24 lb
Width 42.4"
