kidde LCD Text Annunciator with Common Controls. English.

Kidde R-Series Annunciators are high-performance remote annunciators that provide status indication and common controls for compatible fire alarm control panels. This family of annunciators offers LCD or LED annunciation. Models are available with and without common controls.

There are three R-Series annunciator models, plus an LED-based expander. Up to two expanders can be connected to any annunciator. The expander includes 24 pairs of LEDs that extend the capabilities of any of the annunciators.

All annunciator models include status LEDs and an internal buzzer. Two models have an LCD text display, and one has 16 pairs of LEDs for zone annunciation. LCD models feature a large back-lit, four by twenty character per line, super-twist liquid crystal display.

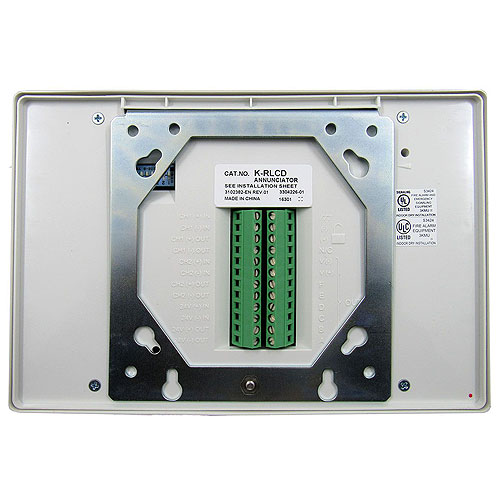

R-Series annunciators and expanders are mounted on a standard 4-inch square electrical box, using the included mounting ring. They can also be surface mounted in locking steel enclosures. Three different enclosures are available.

Main Features

• LCD models feature large 4 x 20 character backlit LCD display
• LED models provide 16 pairs of LEDs for zone annunciation
• Available expander extends capability with 24 pairs of LEDs
• Up to two expanders may be wired to each annunciator
• Status LEDs and internal buzzer standard on all models
• Common controls available for LED and LCD display models
• Available keyswitch for disabling common controls
• Standard 4-inch square electrical box mounting
• Class B or Class A RS485 wiring standard
• One-, two-, and three-position enclosures available
• Graphic Annunciator interface, includes common control, indicators and 32 LEDS
• No programing required, set the address and unit recieves all information from panel
