Keri Systems NXT-5R Proximity Reader

Model: NXT-5R

Category: Readers, Proximity Readers

Brand: Keri Systems

Dealer pricing

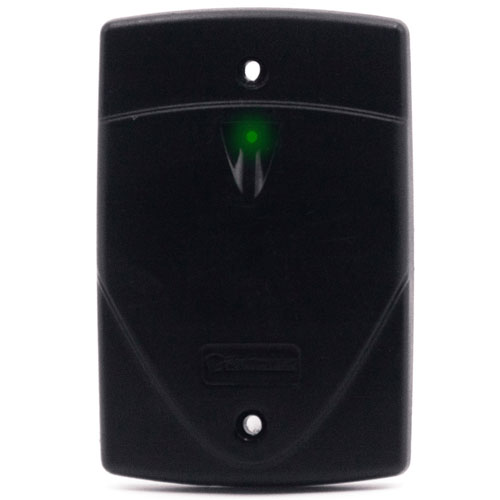

Medium Sized, NXT Reader – The NXT-5R measures 4.18 inches high by 2.95 inches wide by .625 inches deep (10.6 cm high x 7.5 cm wide x 1.6 cm deep) and can be mounted on a US single gang electrical box or flat on a wall. Read range is up to 6″ (15cm) when mounted at least one inch off metal. If the reader is mounted using a metal electrical junction box with the thickness of the wall material separating the reader from the box, read range will be reduced.

  • Single Bus Entry & Exit
  • Up to 6" read range (15.24cm)
  • 300m Wiring Distance
  • NXT or HID 125-kHz credentials
  • Lifetime Warranty

    NXT Readers can be ordered as “Entrance” or “Exit” readers when used with NXT Controllers (Mercury-Powered versions), which doubles the controller’s reader capacity. For “Exit” readers, specify model numbers with an E at end of model number (i.e., NXT-3RE).

    They can now be configured to read certain HID 125 KHz cards and tags such as the HID ® Prox II Credentials, thus providing all of the benefits listed above and eliminating the need for an NXT-WI or NXT-RM3 Reader Interface Board.

Application/Usage Wall
Brand Name Keri Systems
Category Type Proximity Readers
Color Black
Depth 0.6"
Height 6", 4.2"
Input Voltage 14 V DC
Manufacturer Keri Systems, Inc
Model NXT-5R
Maximum Read Range 6"
Placement Wall
Product Type Inductive Sensor
Vendor Name Keri Systems
Weight (Approximate) 3.49 oz
Width 3"
