JBL Control 47LP 2-way Speaker - 75 W RMS

Model: CONTROL 47LP

Category: In-Ceiling & In-Wall Speakers

Brand: Jbl

Dealer pricing

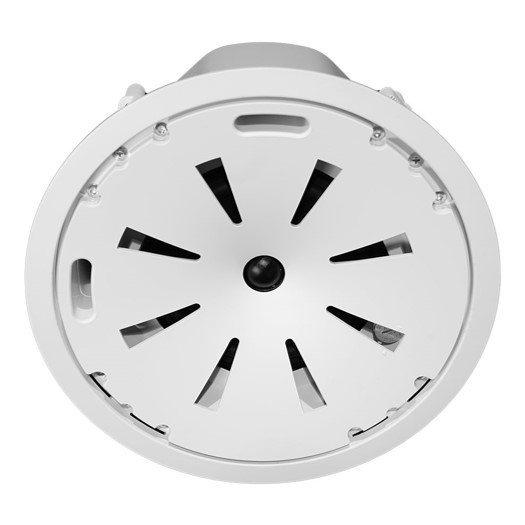

The Control 47LP is a premium in-ceiling professional loudspeaker designed for applications that require extremely wide bandwidth along with very consistent coverage. Featuring JBL’s exclusive conical Radiation Boundary Integrator® (RBI™), the RBI provides a large waveguide for the tweeter while low-frequency sound projects through specially-designed apertures in the RBI, allowing for a seamless integration of coverage between the two coaxially mounted drivers. The result is extremely consistent sound character with very little variation throughout the listening space. The wide coverage allows for the use of fewer loudspeakers compared to speakers with less consistent coverage control, while at the same time providing better coverage of the area.

Main Features

  • Extremely consistent 120° broadband pattern control featuring JBL’s exclusive conical
  • Radiation Boundary Integrator® (RBI™) technology
  • Provides very consistent coverage of listening area
  • Wide coverage requires fewer speakers, reducing the cost of the installed system without sacrificing performance
  • Coaxial design
  • 165 mm (6.5 in) woofer with butyl rubber surround
  • 25 mm (1 in) soft-dome tweeter on 250 mm (10 in) diameter wave guide

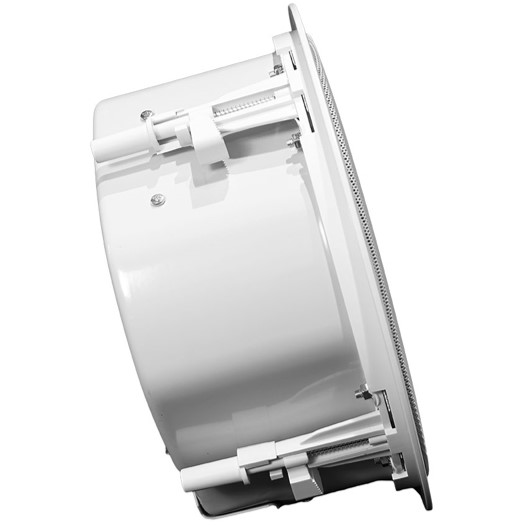

  • Slim design (142 mm / 5.6 in) for use in spaces with restricted / shallow mounting depths
  • 8 ohm and 70V/100V operation

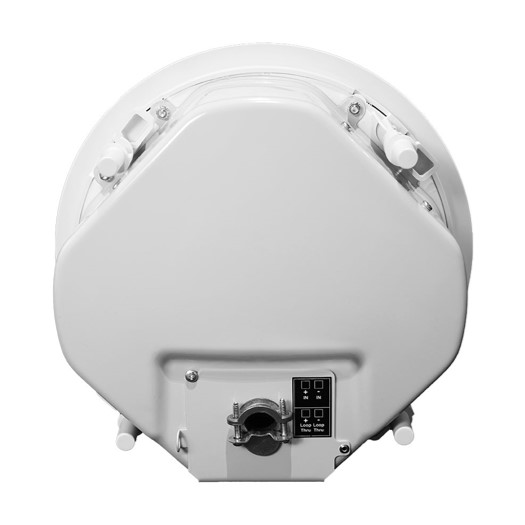

  • Integrated backcan for easy “blind-mount” install

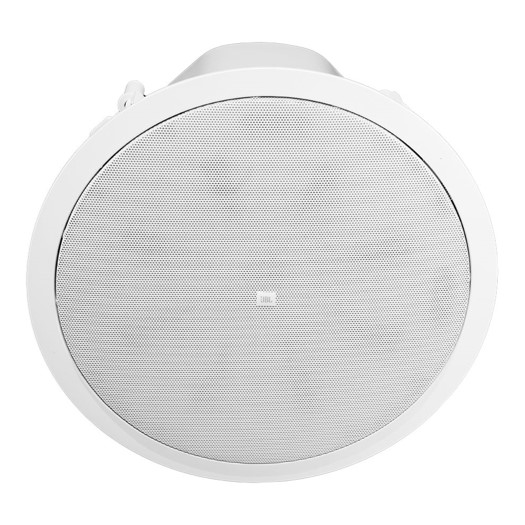

  • Packaged with grille and tile rails for easy installation

Antenna Type Dome
Brand Name JBL
Crossover Type 2-way
Depth 1", 12"
Impedance 8 Ohm
Limited Warranty 5 Year
Manufacturer Harman International Industries, Inc
Model CONTROL 47LP
Material Polypropylene, Aluminum, Butyl Rubber
Maximum Frequency Response 20 kHz
Minimum Frequency Response 68 Hz
Operating Power Consumption 150 W
Product Line Control
Product Type Speaker
RMS Output Power 75 W
Sensitivity 91 dB
Shipping Depth 5.60"
Sound Pressure Level 116 dB
Speaker Diameter 6.50"
Weight (Approximate) 9.50 lb
Width 5.6"
