Model: AW566
Category: Passive Loudspeakers
Brand: Jbl

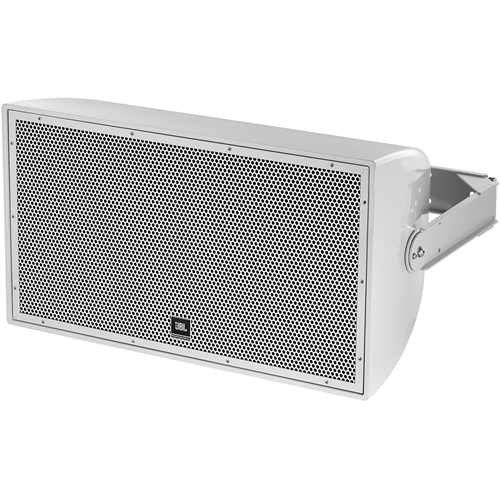

Dealer pricingThe AW566 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H-1 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60° x 60° coverage. The loudspeaker system can used in either the vertical or horizontal orientation. The enclosure is constructed of multilayer glass composite and is heavily braced to maximize lowfrequency performance. The 14-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The system is equipped with a 400 W 70/100V transformer. A heavy-duty stainless steel U-type mounting bracket is included and allows for easy installation on flat surfaces or in 90° corners. The AW566 is part of JBL's AE Series, a versatile family of loudspeakers intended for a wide variety of applications.
| Brand Name | JBL Professional |
| Category Type | Passive Loudspeakers, Corporate & Telework, Education, House of Worship, Retail & Hospitality |
| Certifications & Standards | IP56 per IEC 529 |
| Color | Gray |
| Crossover Frequency | 1.10 kHz |
| Crossover Type | 2-way |
| Depth | 18.8" |
| Driver Type | 1.50" Tweeter, 15" Woofer |
| Height | 19.1" |
| Impedance | 8 Ohm |
| Limited Warranty | 5 Year |
| Model | AW566 |
| Material | Fiberglass, Stainless Steel |
| Maximum Frequency Response | 18 kHz |
| Minimum Frequency Response | 54 Hz |
| PMPO Output Power | 2400 W |
| Product Series | AE |
| Product Type | Speaker |
| RMS Output Power | 600 W |
| Sensitivity | 100 dB |
| Sound Pressure Level | 128 dB |
| Vendor Name | Jbl |
| Weight (Approximate) | 62.39 lb |
| Width | 31.9" |
