Model: AW526-BK
Category: Passive Loudspeakers
Brand: Jbl

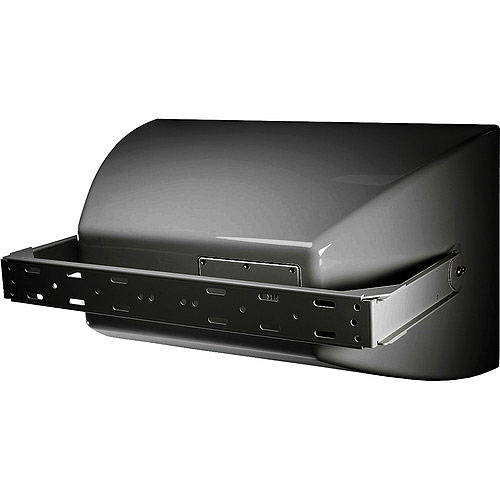

Dealer pricingThe AW526 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H-1 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 120° x 60° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. The system is equipped with a 400 W 70/100V transformer. A heavy-duty stainless steel U-type mounting bracket is included and allows for easy installation on flat surfaces or in 90° corners. The enclosure is constructed of multilayer glass composite and is heavily braced to maximize lowfrequency performance. The 14-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The AW526 is part of JBL's AE Series, a versatile family of loudspeakers intended for a wide variety of applications.
Brand Name | JBL Professional |
Category Type | Passive Loudspeakers, Corporate & Telework, Education, House of Worship, Retail & Hospitality |
Certifications & Standards | IP56 per IEC 529 |
Color | Black |
Crossover Frequency | 1.10 kHz |
Crossover Type | 2-way |
Depth | 18.8" |
Driver Type | 15" Woofer, 1.50" Tweeter |
Height | 19.1" |
Impedance | 8 Ohm |
Limited Warranty | 5 Year |
Model | AW526-BK |
Material | Fiberglass, Stainless Steel |
Maximum Frequency Response | 17 kHz |
Minimum Frequency Response | 55 Hz |
PMPO Output Power | 2400 W |
Product Series | AE |
Product Type | Speaker |
RMS Output Power | 600 W |
Sensitivity | 100 dB |
Sound Pressure Level | 128 dB |
Vendor Name | Jbl |
Weight (Approximate) | 62.39 lb |
Width | 31.9" |
