Isonas Wallmount Keypad Reader-Controller
Isonas Wallmount Keypad Reader-Controller

Isonas Wallmount Keypad Reader-Controller

Model: RC-04-PRX-WK

Category: Panels & Software, Access Control Panels

Brand: Isonas,inc

Dealer pricing

The Pure IP™ hardware family from ISONAS offers a suite of products that allow you to customize your access control solution. Our Reader-Controller continues to take advantage of our patented technology and remains an all in one intelligent device; eliminating the need for a panel and allowing you to take advantage of your existing network.

Main Features
  • Proximity (125kHz)
  • Wall mount keypad form factors allow for US and EU compatible mounting options; creating a simpler install process at each door
  • Bluetooth® Low Energy (BLE) allows customers to utilize our Pure Mobile application and use their smart phone as their credential.
  • Local mode feature allows readers to function without a connection to the network. This results in faster user response times, less network traffic and reduced host system loading.
  • Tamper detection via accelerometer senses any type of altering and prevents a security breach with the reader.

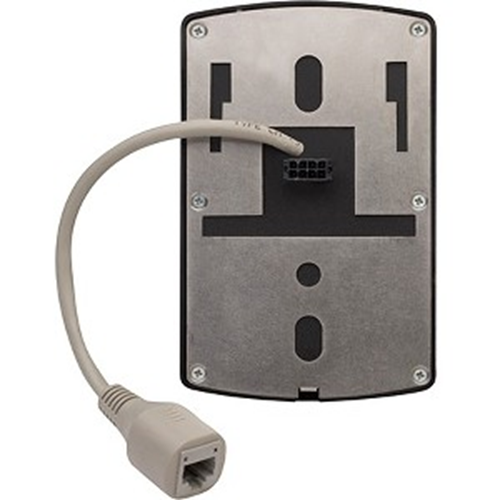

  • Metal back plate provides additional security, a simple two piece installation and consistent read range.
  • Proximity read speed: <250msec
  • Power Options: Power over ethernet (PoE), (IEEE 802.3af, Class 0); DC power: 12VDC In (9 to 16V)
  • Dimensions: 5.1”x 3.25” x 0.71”
  • Extension cable: 7.5in & Adapter: 19mm diameter

Application/Usage Door
Brand Name Isonas
Category Type Access Control Panels
Color Black
Depth 0.2"
Environmentally Friendly Yes
Ethernet Technology Ethernet
Form Factor Wall Mountable
Height 0.2", 5.1"
Identification Method Key Code, Proximity, Proximity, Key Code
Input Voltage 16 V DC
Model RC-04-PRX-WK
Network (RJ-45) Yes
Operating Range 3"
Product Line Pure IP
Product Type Card Reader/Keypad Access Device
Vendor Name Isonas,inc
Width 3", 3.3"
