Honeywell Home Outdoor Wireless Contact/Transmitter
Honeywell Home Outdoor Wireless Contact/Transmitter

Honeywell Home Outdoor Wireless Contact/Transmitter

Model: 5816OD

Category: Wireless Alarm Systems, Wireless Door & Window Contacts

Brand: Honeywell Home Intrusion

Dealer pricing

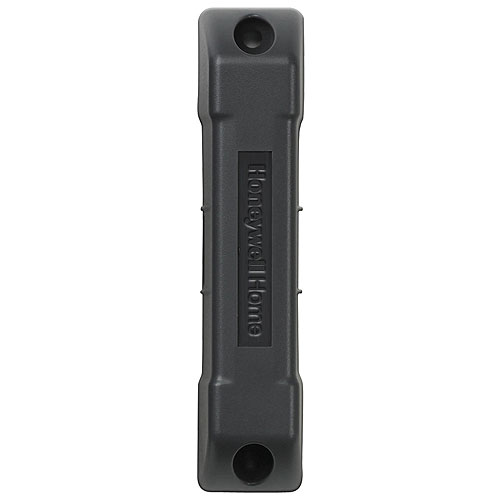

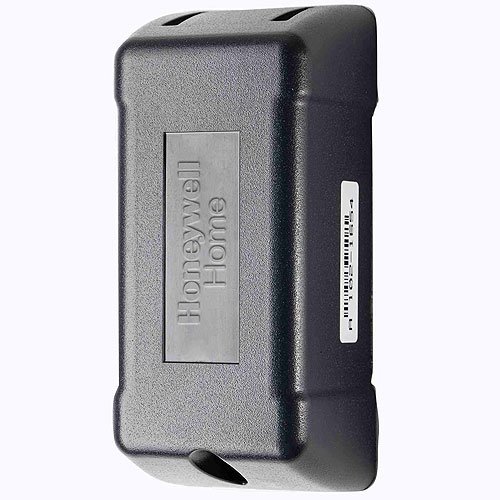

Honeywell Home robust 5816OD is a weatherproof, water-resistant outdoor wireless transmitter that provides excellent detection and performance in extreme temperatures. It operates in temperatures from -40° F to 150° F (-40° C to +66° C), (100% RH).

The 5816OD also contains two unique zones. The first loop is a normally closed circuit contact that can have external devices wired directly to it. The second loop is a built-in magnetic reed switch that can be used to protect gates, sheds, detached garages or any other outdoor area with an exit/entry point. It is also an ideal way to protect outdoor equipment when using outdoor rated magnetic pull apart contacts.

Main Features
  • Weather-proof and water-resistant housing makes it ideal for harsh outdoor climates -40° F to 150° F (-40° C to +66° C), (100% RH)
  • Maximum magnet gap 1.75" on wood, vinyl and non-metallic surfaces and 1.25" on steel to facilitate easier installation
  • Two long life AA lithium batteries, easily replaceable
  • Built-in reed switch contact loop
  • Built-in wired closed contact loop (for use with external devices)
  • Tamper protection-removal of front cover and transmitter from mounting plate
  • Screw mountable
  • Stainless steel or nylon cable tie mountable (ties not included)
  • Magnet and magnet spacer included
  • Paintable plastic housing to match any surface

Application/Usage Residential, Commercial, Door, Outdoor, Residential, Window, Window, Outdoor, Door, Commercial
Brand Name Honeywell Home
Category Type Wireless Door & Window Contacts
Depth 1.4"
Height 4.3"
Manufacturer Resideo
Model 5816OD
Material Plastic, Plastic - Housing
Product Type Door/Window Sensor
Vendor Name Honeywell Home Intrusion
Width 2"
