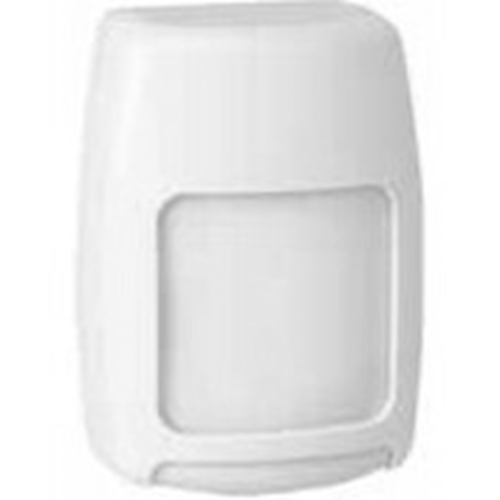

Honeywell Home 5800PIR Motion Sensor
Honeywell Home 5800PIR Motion Sensor

Honeywell Home 5800PIR Motion Sensor

Model: 5800PIR

Category: Wireless Alarm Systems, Wireless PIRs

Brand: Honeywell Home Intrusion

Dealer pricing

The Honeywell Home 5800PIR Series Wireless Motion Detectors pack some big benefits into a sleek, compact design—including easy, flexible installation and programming, fewer service calls, reduced false alarms and much, much more. Choose from three versions designed to help increase your profits and average selling price, add more content per sale and expand your commercial wireless offering right now!

The 5800PIR offers all of the great features of the 5800PIR-RES plus more.

Main Features
  • The ability to turn on the walk test mode with a flashlight—saving you two trips up a ladder!
  • Pet immune settings provide 0 lbs. or 80 lbs. of pet immunity
  • Cold temperature alert, which detects when temperature falls below 45° F and can be integrated with Resideo Total Connect Remote Services to increase your RMR
  • The ability to set for pet immunity/sensitivity or program low temperature sensing on-site or from the central station, reducing service calls
  • Self-test feature that alerts you if the detector stops functioning, helping to decrease liability
  • Optional look-down zone
  • 35' x 40' pattern

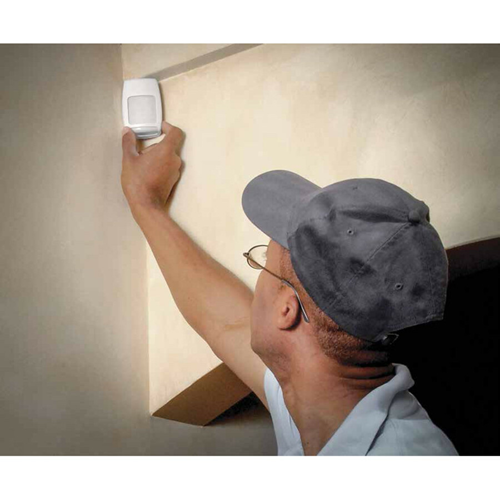

  • Installation is faster with no DIP switches or jumpers to set, an easy opening case with no PCB to install, no mounting height adjustments and an automatic walk test that lasts ten minutes on power-up
  • Includes longer-life, end-user replaceable batteries (38% longer than 5890PI)
  • The sleek, compact sensor can be custom-painted to match any interior—making it an appealing choice for end-users.

Application/Usage Indoor
Brand Name Honeywell Home
Category Type Wireless PIRs
Color White
Connectivity Technology Wireless
Depth 3.4", 1.5"
Environmentally Friendly Yes
Features Self Test
Form Factor Ceiling-mountable, Wall-mountable, Ceiling Mount, Wall Mount, Wall-mountable, Ceiling-mountable
Height 2.4"
Manufacturer Resideo
Model 5800PIR
Maximum Motion Sensing Distance 40 ft
Passive Infrared Sensor (PIR) Yes
Power Source Battery
Product Series 5800PIR
Product Type Motion Sensor
Vendor Name Honeywell Home Intrusion
Weight (Approximate) 2.86 oz
Width 3.4", 1.5", 2.4"
Wireless Technology Infrared
