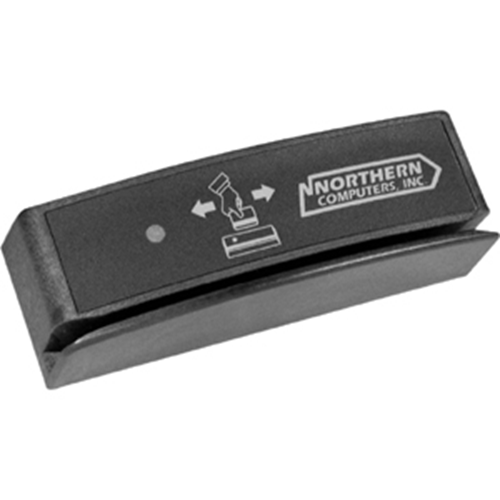

Honeywell BR-7 Swipe Bar Code Reader
Honeywell BR-7 Swipe Bar Code Reader

Honeywell BR-7 Swipe Bar Code Reader

Model: BR-7

Category: Readers, Mag Stripe Readers

Brand: Honeywell Commercial Security

Dealer pricing

Bar code reader allows you to read virtually all existing bar code cards. Northern Computers' BR-7 Bar Code Reader allows you to read virtually all existing bar code cards and is housed in a rugged, water-resistant enclosure. Bar code cards are simple to create and easy to use. They provide the lowest-cost cards of any access control technology. With a security overlaminate, they provide protection from copying and a high level of security

The BR-7 reader outputs in a Wiegand format and reads either 5 or 12 digit cards. (12 digit cards can be used with the N-1000-II control panel Version 6.03, 7.49 or higher firmware). The BR-7 reads most bar code symbologies including: Code 39 and Interleaved 2 of 5. It is autodiscriminating, and reads in both directions. It reads with a wide range of bar code densities and scanning speeds. Infrared optics make it compatible with most masking film and bar code security coverings.

Main Features
  • Bar Code Reader connects to your existing system with a standard Wiegand interface
  • Has a tough cast aluminum housing to protect it against moisture and vandalism
  • Infrared optics make it compatible with most masking films
  • The reader will read most bar code symbologies
  • Auto discriminating, reads in both directions
  • Overlaminate on cards provide protection from copying

Brand Name Honeywell
Category Type Mag Stripe Readers
Color Black
Connectivity Technology Cable
Depth 1.7", 1.5"
Form Factor Swipe
Height 5.1", 1.7"
Light Source Infrared
Manufacturer Honeywell International, Inc
Model BR-7
Product Type Barcode Scanner
Scan Pattern Bi-directional
Vendor Name Honeywell Commercial Security
Weight (Approximate) 6 oz
Width 5.1", 1.5"
Wireless Technology Infrared
