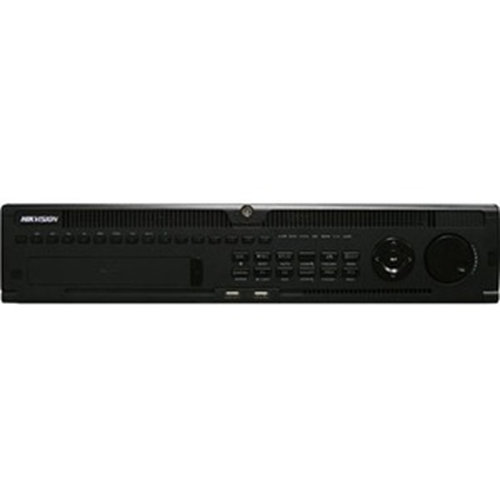

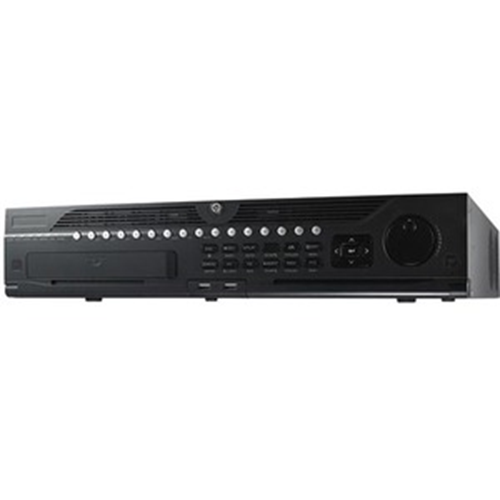

Hikvision Embedded NVR
Hikvision Embedded NVR

Hikvision Embedded NVR

Model: DS-9664NI-I8-48TB

Category: NVRs

Brand: Hikvision

Dealer pricing

Professional and Reliable

  • New logical and visualized GUI design
  • Dual-OS design to ensure high reliability of system running
  • ANR technology to enhance the storage reliability when the network is disconnected
  • HDD hot swap with RAID0, RAID1, RAID5, RAID6 and RAID10 storage scheme configurable
  • Configurable normal or hot spare working mode to constitute an N+1 hot spare system

Video Input and Transmission

  • Adopt stream over TLS encryption technology (enhanced SDK service and RTP over HTTPS protocol) which provides more secure stream transmission service (max. 128 Mbps TLS stream outgoing bandwidth, when RAID is enabled, it will restrict TLS stream outgoing bandwidth to 64 Mbps)
  • Up to 64-ch IP cameras can be connected (up to 12 MP)
  • Connectable to the third-party network cameras

Compression and Recording

  • H.265+ compression effectively reduces the storage space by up to 75%
  • Full channel recording at up to 12MP resolution HD Video Output

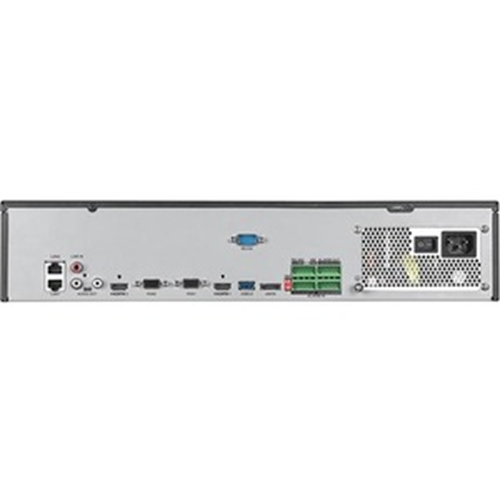

  • HDMI1/VGA1 and HDMI2/VGA2 outputs provided
  • HDMI1 Video output at up to 4K (3840 × 2160) resolution

Storage and Playback

  • Up to 8 SATA interfaces and 1 eSATA interface for HDD connection
  • 10TB capacity for each HDD
  • 8/16-ch synchronous playback at up to 1080p resolution
  • Important files management
  • HDD health monitoring

Smart &POS Function

  • Supports multiple VCA (Video Content Analytics) events
  • Smart search for the selected area in the video; and smart playback to improve the playback efficiency
  • Supports VCA search for fire/ship/temperature/temperature difference detection triggered video files
  • POS information overlay on live view and playback
  • POS triggered recording and alarm

Network & Ethernet Access

  • Hik-Connect for easy network management
  • 2 Gigabit Ethernet network interfacesMain Features
Main Features
  • Allows you to control multiple linked IP cameras remotely or centrally that exist at different locations
  • Manage remotely from your computer, tablet, smartphone or any other mobile device
  • Ethernet connectivity is more reliable then wireless
  • Up to 64 number of channels to address small-to-mid range requirements
  • USB port for easy sync/connectivity

Brand Name Hikvision
Connectivity Technology Wired
Depth 3.5", 17.5"
Environmentally Friendly Yes
Height 18.5"
Limited Warranty 36 Month
Model DS-9664NI-I8-48TB, DS-9664NI-I8
Maximum Video Resolution 4000 x 3000
Number of +12V Rails 2
Number of Time Zones 64
Packaged Quantity 1
Product Series DS-9600NI-I8
Product Type Video Surveillance Station
System Components Network Video Recorder
Total Hard Drive Capacity Installed 48 TB
Video Formats H.264, H.264+, H.265, MPEG-4
Weight (Approximate) 22 lb
