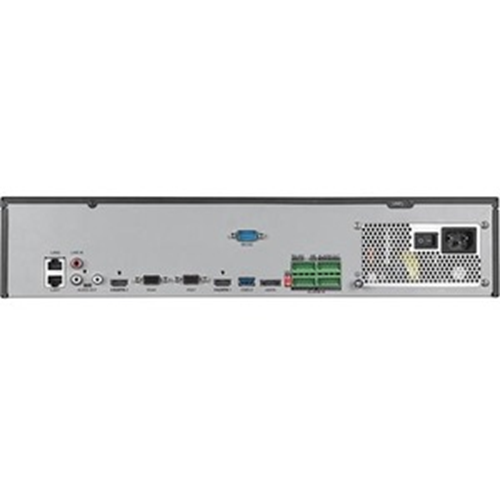

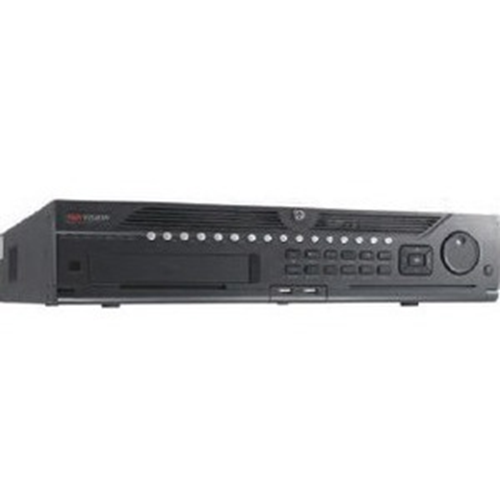

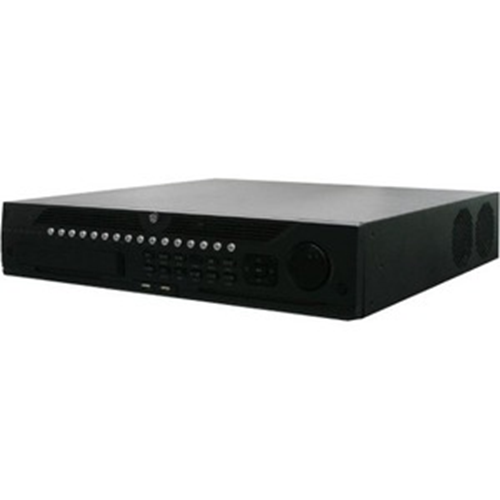

Hikvision Embedded NVR

Model: DS-9632NI-I8-28TB

Category: NVRs

Brand: Hikvision

Dealer pricing

Professional and Reliability

  • H.265+ compression effectively reduces the storage space by up to 75%
  • Dual-stream recording saves bandwidth
  • Adopt stream over TLS encryption technology which provides more secure stream transmission service
  • Support double verification for playback and downloading

HD Video Output

  • Provide independent HDMI and VGA outputs
  • HDMI video output at up to 4K resolution

Storage and Playback

  • Hot-swappable HDD with configurable RAID 0, RAID 1, RAID 5, RAID 6 and RAID 10 storage scheme
  • 1 eSATA interface for HDD connection
  • 16-ch synchronous playback

Smart & POS Function

  • Support multiple VCA (Video Content Analytics) events
  • Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
  • POS information overlay on live view and playback, and POS triggered recording and alarm

Network & Ethernet Access

  • 2 self-adaptive 10/100/1000 Mbps Ethernet interfaces
  • Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
  • Smooth streaming technology
  • Support web access without plug-in
Main Features
  • Experience higher quality recording with even low mega pixels, thanks to NVR
  • Up to 32 number of channels to address small-to-mid range requirements
  • USB port for easy sync/connectivity

Brand Name Hikvision
Category Type NVRs
Connectivity Technology Wired
Depth 3.5", 17.5"
Environmentally Friendly Yes
Ethernet Yes
Hard Drive 28 TB
Hard Drive Capacity 28 TB
HD Recording Yes
HDMI Yes
Height 3.5", 18.5"
Limited Warranty 36 Month
Model DS-9632NI-I8-28TB, DS-9632NI-I8
Maximum Resolution 4000 x 3000
Maximum Video Resolution 4000 x 3000
Number of +12V Rails 2
Number of VGA Out 2
Packaged Quantity 1
Product Series DS-9600NI-I8
Product Type Video Surveillance Station
Remote Management Yes
System Components Network Video Recorder
Threads Per Inch (TPI) 32
Total Number of Audio In Ports 1
Total Number of Audio Out Ports 2
Total Number of Channels 32
USB Yes
Vendor Name Hikvision
Video Formats MPEG-4, H.265, H.264+, H.264, H.264, H.264+, H.265, MPEG-4
Weight (Approximate) 22.05 lb
Width 18.5"
