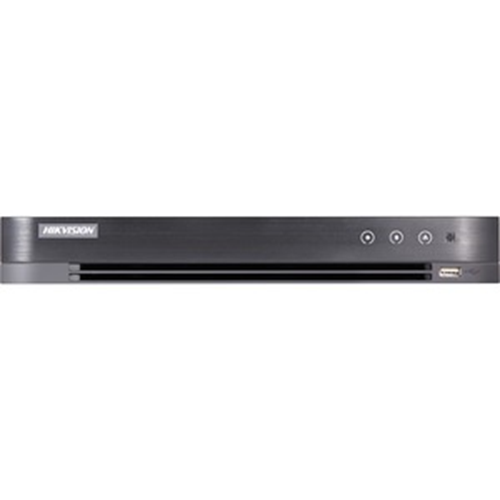

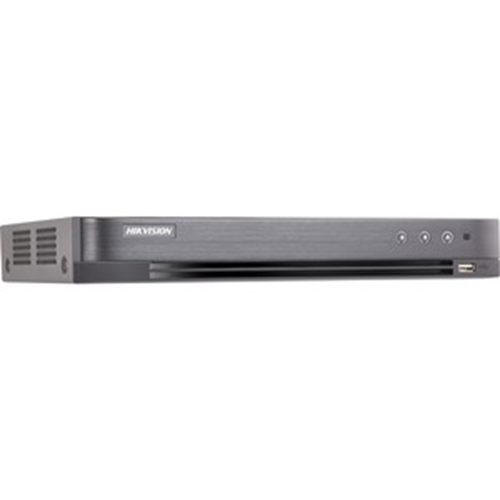

Hikvision DS-7204HTI-K1 TurboHD DVR

Model: DS-7204HTI-K1-2TB

Category: HDoC DVRs

Brand: Hikvision

Dealer pricing

TurboHD DS-72xxHTI-Kx DVRs support up to 4K output resolution and offer camera support on up to 4/8 channels. They offer long transmission distances and feature the latest H.265+ compression technology, which improves recording efficiency and reduces data storage costs.

  • 4-ch synchronous playback

  • H.265+/H.265/H.264+/H.264 Main Stream Encoding

  • VGA Output at Up to 1920 × 1080 Resolution HDMI Output at Up to 4K (3,840 x 2,160) Resolution

  • Main stream: 8 MP @ 12 fps, 5 MP @ 20 fps, 3 MP @ 18 fps

  • VGA Output: 1-ch, 1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz HDMI Output: 1-ch, 4K (3840 × 2160) / 30 Hz, 2K (2560 × 1440) / 60 Hz, 1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz

Application/Usage Digital Video Recorder
Brand Name Hikvision
Category Type HDoC DVRs
Composite Video In Yes
Composite Video Out Yes
Connectivity Technology Wired
Depth 12.4", 9.5"
Environmentally Friendly Yes
Ethernet Yes
Frame Rate 30 Frames Per Second
Hard Drive 2 TB
Hard Drive Capacity 2 TB
HD Recording Yes
HDMI Yes
Height 1.8"
Limited Warranty 3 Year
Model DS-7204HTI-K1-2TB
Maximum Frame Rate 30 fps
Maximum Resolution 8MP
Number of VGA Out 1
Packaged Quantity 4, 1
Product Line TurboHD
Product Type Video Surveillance Station
Remote Management Yes
System Components Digital Video Recorder
Total Number of Audio In Ports 4
Total Number of Audio Out Ports 1
Total Number of Channels 4
USB Yes
Vendor Name Hikvision
Video Formats H.264, H.264+, H.265, H.265+, H.265+, H.265, H.264+, H.264
Video Signal Format PAL, NTSC, NTSC, PAL
Weight (Approximate) 3.30 lb
Width 12.4", 1.8"
