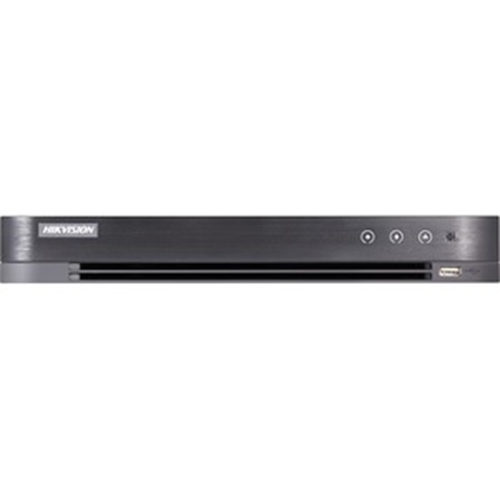

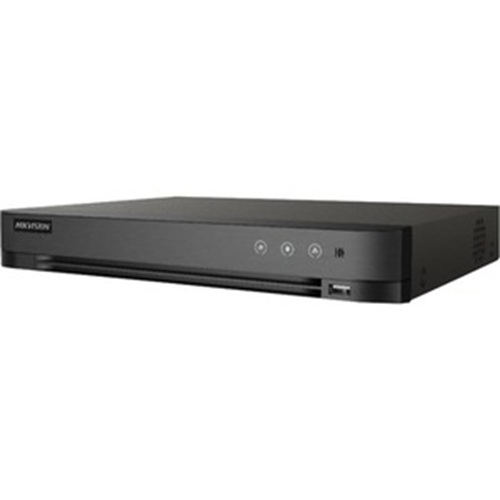

Hikvision 4-channel 1080p 1U H.265 DVR

Model: DS-7204HQHI-K1-1TB

Category: HDoC DVRs

Brand: Hikvision

Dealer pricing

Hikvision’s TurboHD DS-72xxHQHI-Kx Series DVRs feature a range of self-adaptive signal inputs and offer camera support on up to 16 channels. They offer transmission distances of up to 2,630 ft (800 m) on 1080p, and 3,940 ft (1,200 m) on 720p HD-TVI.

Main Features

">

  • H.265+ / H.265 / H.264+ / H.264 and Dual-Stream Video Compression
  • Full Channel Recording at up to 2 MP
  • HDMI and VGA Output up to 3840 x 2160
  • Main stream: When 1080p Lite mode not enabled: For 3 MP stream access: 3 MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF @ 15 fps
  • Up to 16-ch Synchronous Playback Support
">

Application/Usage Digital Video Recorder
Brand Name Hikvision
Composite Video In Yes
Composite Video Out Yes
Connectivity Technology Wired
Depth 9.5", 12.4"
Environmentally Friendly Yes
Ethernet Yes
Hard Drive 1 TB
Hard Drive Capacity 1 TB
HD Recording Yes
HDMI Yes
Height 1.8"
Model DS-7204HQHI-K1-1TB
Maximum Frame Rate 30 fps
Maximum Output Power 6 W
Maximum Resolution 4MP
Number of VGA Out 1
Packaged Quantity 1, 4
Power Consumption 6 W
Product Line Turbo HD
Product Series DS-7200HQHI-K1
Product Type Video Surveillance Station
Remote Management Yes
System Components Digital Video Recorder
Total Number of Audio In Ports 1
Total Number of Audio Out Ports 1
Total Number of Channels 4
USB Yes
Vendor Name Hikvision
Video Formats H.265 Pro, H.265 Pro+, H.264, H.264+, H.265, H.265 Pro, H.265 Pro+, H.265+, H.265+, H.265, H.264+, H.264
Video Signal Format PAL, NTSC, NTSC, PAL
Weight (Approximate) 2.56 lb
Width 12.4", 1.8"
