Model: DS-KIS701

Category: IP Intercom

Brand: Hikvision

Dealer pricing

Outstanding image quality, convenient mobile control anytime, anywhere. Excellent touch experience plug & play and easy installation.

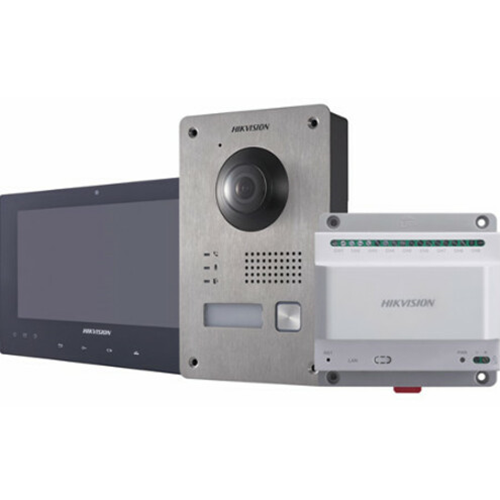

Includes one Two-Wire Door Station (DS-KV8103-IME2), one Two-Wire Indoor Station (DS-KH8340-TCE2), and one Two-Wire Power & Data Distributor (DS-KAD709).

Main Features

The DS-KV8103-IME2 by Hikvision is a two-wire digital villa door station. It is compact, convenient, and easy to install. It features a 2 MP CMOS low illumination color camera, which enables security applications in low-light conditions.

  • Video Intercom Function
  • Access Control Function
  • HD Video Surveillance with High Performance CMOS
  • Low Illumination 2 MP HD Colorful 155° Fish-Eye Camera
  • Self-Adaptive IR Supplement
  • Tampering Alarm and Door Magnetic Alarm Supported
  • Remote Upgrade via Client
  • Supports Surface Mounting and Flush Mounting

The DS-KAD709 by Hikvision is an integrated unit that supports two-wire indoor stations and outdoor door stations. It is compact, convenient, and easy to install. Its two-wire interfaces and adaptive network interface can support up to five devices and one external switch.

  • Supports Up to Five Two-Wire Stations (2 Outdoor Stations Maximum)
  • One 10/100M Self-Adaptive Network Interface to Support External Switch
  • 24 VDC Power Supply and Communications between Door Stations and Indoor Station
  • Industrial Design and DIN Rail Mount Supported

The DS-KH8340-TCE2 by Hikvision is a two-wire indoor station with a 7" touch screen. It is compact, convenient, and easy to install. It supports hands-free communication with door and master stations. The system supports up to a total of five outdoor and indoor stations, with a maximum of two outdoor stations).

  • Hands-Free Audiovisual Communication with the Door Station and the Master Station in the Intercom System
  • Supports the Monitoring of Door Stations and External Cameras
  • Supports Auto-Answering and Do Not Disturb Mode
  • Noise Suppression and Echo Cancellation
  • Supports 8-ch Zone Alarm Input
  • Supports Panic Call
  • Remote Unlocking via the Client
  • Convenient Installation and Easy Operation

Application/Usage Door Entry
Brand Name Hikvision
Camera Resolution 2 Megapixel
Communication Mode Half-duplex
Compatibility
Display Screen Type TFT LCD
Effective Camera Resolution 2 Megapixel
Environmentally Friendly Yes
Image Sensor CMOS
Image Sensor Type CMOS
Material Stainless Steel
Power Consumption 60 W
Product Type Video Door Phone
Screen Resolution 1024 x 600
Screen Size 7"
Touchscreen Yes
Vendor Name Hikvision
Width 7"
Wiring Type 2-wire
