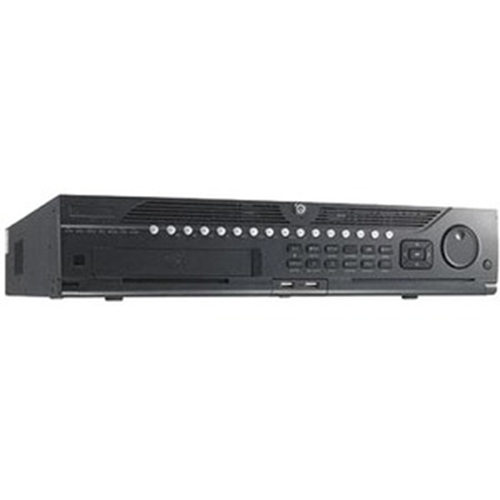

Hikvision Network Video Recorder

Stream and record up to 16 channels of video with thePro Series 16-Channel 12MP NVRfromHikvisionat resolutions of up to 3840 x 2160. Equipped with eight SATA ports, the NVR can be configured to have internal storage of up to 48TB (HDDs available separately). External storage options include PCs via Internet connection, network servers, USB storage devices, and eSATA devices. H.265, H.264+, H.264, and MPEG-4 compression are supported, enabling you to choose the format that works best for your application.

The NVR enables simultaneous playback of up to 16 channels at resolutions up to 3840 x 2160 via its HDMI and VGA ports with a maximum incoming transfer speed of 320 Mb/s. The NVR is equipped with RCA connectors for bidirectional audio, as well as with RS-485, RS-232, and keyboard serial interfaces. Third-party network cameras are supported.

Main Features

• HDD hot-swap, RAID 0, RAID 1, RAID 5, RAID 10 configurations
• VCA detection alarm and VCA search
• RS-485 control Hikvision-C and Pelco D/P protocol
• Instant camera playback during multi-channel live view
• Reverse playback for multi-channels
• Smart search and playback make locating specific incidents quick and accurate
• Customization of tags, searching, and playing back by tags
• HDD quota and group management
• Hikvision DDNS (Dynamic Domain Name System)
• Third-party network cameras supported
