Hikvision Embedded NVR

Record from and manage up to 32 cameras with theDS-9632NI-I8 32-Channel 12MP 4K NVR with 8TB HDDfromHikvision. This NVR supports IP cameras up to 12MP. It is equipped with eight SATA ports that each support an HDD up to 10TB, for a maximum capacity of 80TB (8TB preinstalled). H.265+, H.265, H.264+, H.264, and MPEG-4 video codecs keep file sizes manageable while maintaining the best quality possible.

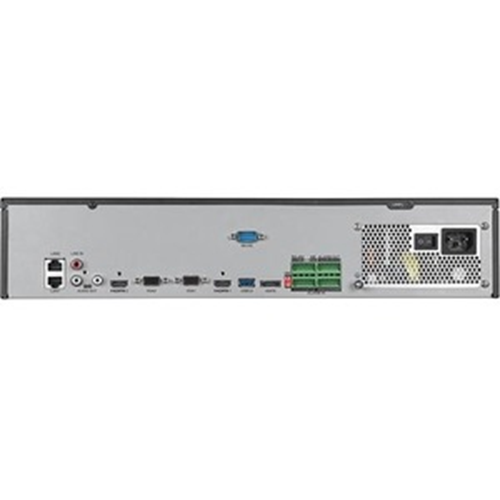

This NVR supports up to 128 remote connections. An RCA audio input and output enables two-way audio. Two VGA and two HDMI ports enable video output to an external monitor (available separately) at up to 4K UHD resolution. Compliance with ONVIF profiles G and S provides interoperability with ONVIF IP cameras.

Main Features

• Recording resolution up to 12MP
• H.265+, H.265, H.264+, H.264, and MPEG-4 video codecs
• Two HDMI outputs
• Two VGA outputs
• HDD storage expandable to 80TB
• HDD quota and group management
• Hot-swappable with configurable RAID 0, 1, 5, 6, and 10 support
• eSATA interface
• Smart Search and playback
• Instant camera playback during multi-channel live view
• VCA detection alarm and search
• Complies with ONVIF profiles G and S for interoperability with third-party ONVIF network cameras
• 16-channel synchronous playback
• 2 x 1000M RJ45 self-adaptive Ethernet ports
• RS-485 interface (Hikvision-C, Pelco P, and Pelco D protocols)
• RS-232 interface
• 2 x USB 2.0 and 1 x USB 3.0
• 16 x alarm inputs and 4 x alarm outputs
• Keyboard input
• SW terminal switch
