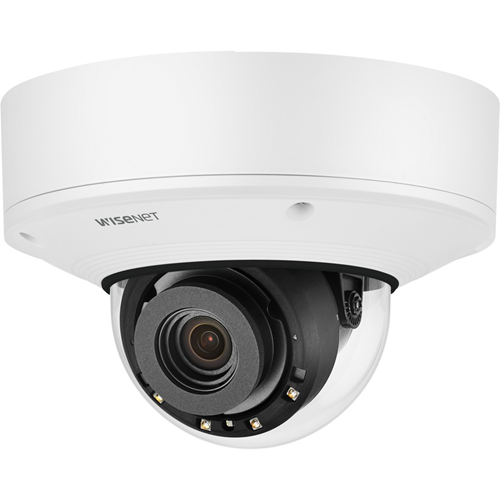

Model: PNV-A9081R
Category: Education Solutions, IP Dome Cameras
Brand: Hanwha Techwin America - Us
Dealer pricing| ADI Part Number | SQ-PNVA9081R |
| Analog Video Signal Format | CVBS |
| Antenna Type | Dome |
| Application/Usage | Outdoor |
| Brand Name | Wisenet, Hanwha Techwin |
| Color | White |
| Color Supported | Color, Monochrome |
| Connectivity Technology | Wired |
| Diameter | 7.1" |
| Durability | Vandal Resistant |
| Effective Camera Resolution | 8 Megapixel |
| Environmentally Friendly | Yes |
| Features | Audio Detection, Built-in Infrared Illuminator, Day/Night, Digital Image Stabilization, Face Detection, Motion Detection, PTZ, SD Card Local Storage, Shock Detection, Tamper Detection, Wide Dynamic Range |
| Field of View | H:101.4°(Wide)~45.5°(Tele) / V:53.6°(Wide)~25.5°(Tele) / D:120.7°(Wide)~52.3°(Tele) |
| Form Factor | Dome |
| Graphics Modes | 4K |
| HD Recording | Yes |
| Height | 7.1" |
| Image Sensor | CMOS |
| Image Sensor Type | CMOS |
| Impact Protection Rating | IK10+ |
| Ingress Protection Rating | IP66, IP67, IP6K9K |
| Input Voltage | 12 V DC |
| Lens Type | Varifocal, Zoom |
| Limited Warranty | 3 Year |
| Longest Shutter Speed | 1/5 Second |
| Manufacturer | Hanwha Group |
| Model | PNV-A9081R |
| Maximum Aperture | f/1.6 |
| Maximum Focal Length | 10 mm |
| Maximum Frame Rate | 30 fps |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Video Resolution | 3840 x 2160 |
| Minimum Aperture | f/2.65 |
| Minimum Focal Length | 4.50 mm |
| Minimum Operating Temperature | -40°F (-40°C) |
| Mount Type | Conduit Mount, Corner Mount, Gang Box Mount, Gooseneck, Hanging Mount, Parapet Mount, Pendant Mount, Pipe Mount, Pole Mount, Wall Mount |
| Network (RJ-45) | Yes |
| Night Vision Distance | 98.43 ft |
| Operating Humidity | 90% |
| Optical Zoom | 2.2x |
| Product Series | P |
| Product Type | Network Camera |
| Remote Management | Yes |
| Shortest Shutter Speed | 1/12000 Second |
| Storage Type | Memory Card |
| Vendor Name | Hanwha Techwin America - Us |
| Video Formats | H.265, H.264, H.264 (MP), H.264 HP, H.265, MJPEG, H.264, MJPEG |
| Weight (Approximate) | 4.19 lb |
| Wireless Technology | Infrared |
