Model: 520-CS1320-000
Category: Panels & Software, Access Control Panels
Brand: Geovision

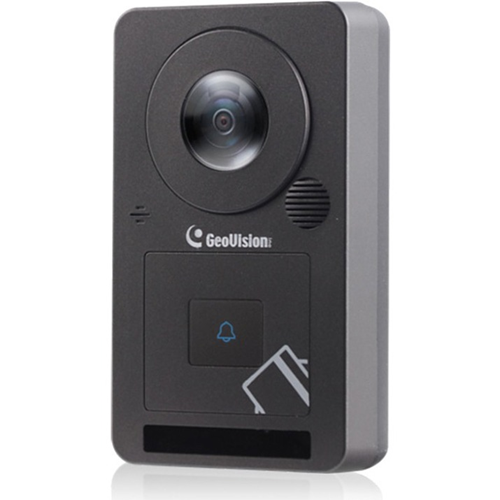

Dealer pricingGV-CS1320 is an access controller with a built-in 2 MP camera and 13.56 MHz reader. GV-CS1320 recognizes access control cards and grants access to up to 100,000 users accordingly. Its camera captures the live view of entrance and transmits it to the access control system GV-ASManager over a network, without the need of installing and maintaining a separate camera in addition to the camera access controller.
Three types of notifications are available for the operator to communicate with visitors at the door installed with GV-CS1320 and grant access: SIP/VoIP Calling, GV-ASNotify PC program and GV-Access mobile app.
For VoIP Calls, when its touchpad is activated, GV-CS1320 will place a call to the operator through VoIP. The operator can then communicate with the visitor and enter an access code to open the door. Additionally, GV-CS1320 supports the Card and Face mode to perform face detection together with card verification before access can be granted.
| Application/Usage | Door |
| Brand Name | GeoVision |
| Category Type | Access Control Panels |
| Depth | 1.4" |
| Diameter | 5.4" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| Form Factor | Door-mountable |
| Height | 3.1" |
| Identification Method | Face Detection, Proximity |
| Ingress Protection Rating | IP66 |
| Input Voltage | 12 V DC |
| Limited Warranty | 24 Month |
| Manufacturer | GeoVision, Inc |
| Model | 520-CS1320-000 |
| Maximum Motion Sensing Distance | 10 ft |
| Number of Users | 100000 |
| Packaged Quantity | 1 |
| Product Type | Card Reader Access Device |
| Vendor Name | Geovision |
| Weight (Approximate) | 11.11 oz |
