Fire-Lite Relay
Fire-Lite Relay

Fire-Lite Relay

Model: ANN-RLY

Category: Fire Power & Relays, Fire Relays

Brand: Fire-lite Alarms By Honeywell

Dealer pricing

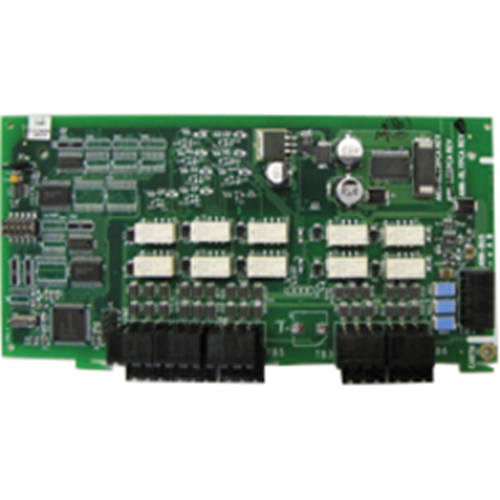

The ANN-RLY relay module provides 10 programmable Form- C relays when used with a compatible FACP (Fire Alarm Control Panel). The ANN-RLY module may be mounted inside the FACP main circuit board chassis, ROME or in the battery area of the enclosure using optional mounting bracket.

Main Features
  • ANN-RLY connects to the ANN-BUS terminal on the FACP and requires minimal programming.
  • Provides 10 programmable Form-C relays.
  • Ten Form-C relays can be programmed for various functions; Alarm, Trouble, Supervisory, AC Loss, Waterflow Delay, Input Zones and Silenceable Alarm.
  • Compatible with the MS9600LS, MS-9600UDLS, MS-9200UDLS, MS-9050UD, MS-5UD-3, MRP-2001, MRP-2002and MS-10UD-7.
  • May be powered by 24 VDC from the host FACP or by remote power supply
  • Up to eight ANN-BUS devices may be connected to the ANN-BUS of each FACP.

Brand Name Fire-Lite
Category Type Fire Relays
Compatibility
Limited Warranty 3 Year
Manufacturer Honeywell International, Inc
Model ANN-RLY
Product Type Relay, Fire Alarm Control Panel, Relay Module
Vendor Name Fire-lite Alarms By Honeywell
