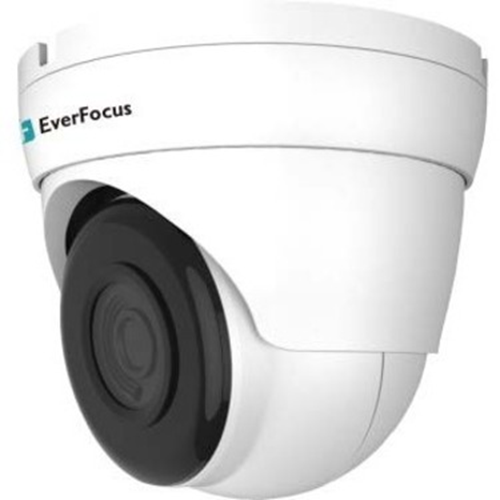

EverFocus EBN1540-S 5 Megapixel Network Camera - Ball

Model: EBN1540-S

Category: IP Dome Cameras

Brand: Everfocus

Dealer pricing

Main Features

5MP Progressive scan CMOS sensor
Equipped with 3.6mm fixed lens
Multi-streaming from H.265 / H.264
Supports D-WDR
Provides True Day/Night functionality with automatic
IR filter operation
Extended IR range up to 30m / 98ft with 18 LEDs (depends on scene IR reflectivity)
Supports ONVIF (Profile S, Profile G)
Weather-proof IP66 rated
Supports live monitoring via mobile Apps (iOS & Android)
Supports PoE and 12VDC

ADI Part Number	F8-EBN1540S
Application/Usage	Outdoor
Brand Name	EverFocus
Color Supported	Color, Monochrome
Connectivity Technology	Wired
Durability	Weather Proof
Effective Camera Resolution	5 Megapixel
Environmental Certification	RoHS
Environmentally Friendly	Yes
Features	3D Digital Noise Reduction, Day/Night, Motion Detection, Motion Triggered, Multi-crop Streaming, Password Protection
Field of View	101°
Form Factor	Ball
Height	3.6"
Image Sensor	CMOS
Ingress Protection Rating	IP66
Input Voltage	12 V DC
Longest Shutter Speed	1/5 Second
Manufacturer	EverFocus Electronics Corporation
Model	EBN1540-S
Maximum Focal Length	3.60 mm
Maximum Frame Rate	30 fps
Maximum Operating Temperature	131°F (55°C)
Maximum Video Resolution	2592 x 1944
Minimum Operating Temperature	86°F (30°C)
Mount Type	Bracket Mount, Corner Mount, Pole Mount
Night Vision Distance	98.43 ft
Operating Humidity	95%
Product Series	HD
Product Type	Network Camera
Shortest Shutter Speed	1/20000 Second
Total Number of Network Ports	18
Video Formats	H.264, H.265
Weight (Approximate)	15.34 oz
Width	3.9"
