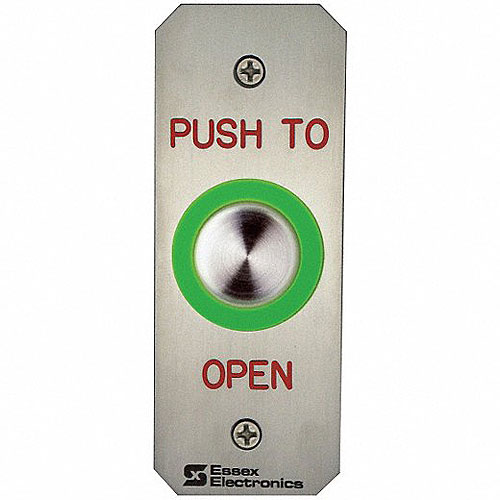

Essex Electronics Narrow Piezoelectric Switch
Essex Electronics Narrow Piezoelectric Switch

Essex Electronics Narrow Piezoelectric Switch

Model: PEBSSN6

Category: Exit Devices & Push Buttons

Brand: Essex Electronics

Dealer pricing

Essex PEB Series Piezoelectric Switches are industrial grade illuminated, stainless steel, timed electronic switches designed to operate in various high use, harsh and vandal prone environments. Suitable for both indoor and outdoor commercial applications, the PEB Series features a unique selectable, bi-colored illumination status. Brilliant red, vibrant green or no illumination can be selected to show Relay ON or Relay OFF status. Illumination can also be controlled externally.

Available with or without stainless steel faceplate, the PEB Series can be used to control an automatic door, electric lock/strike or magnetic lock. It can also be tied into the remote bypass (REX – request to exit) input of an access control system or used to shunt an alarm system to allow egress from a secured area. Specified by architects and designers around the world, the Essex PEB Series Switches are proudly built in the U.S.A. and backed by a limited lifetime warranty.

Main Features
  • Cutting Edge Switch Technology
  • Weather Resistant Design
  • Vandal Resistant Construction
  • Custom Graphics Available
  • Field Selectable Illumination
  • Narrow: Mullion mount.
  • Lifetime Warranty against defects in materials and workmanship.

Brand Name Essex Electronics
Features Heavy Duty, Piezoelectric Switch
Height 4.5"
Ingress Protection Rating IP66
Limited Warranty Lifetime
Longest Shutter Speed 1 Second
Manufacturer Essex Electronics, Inc
Model PEBSSN6
Material Stainless Steel
Maximum Operating Temperature 158°F (70°C)
Maximum Timer Duration 40 Second
Minimum Operating Temperature -40°F (-40°C)
Print/Message Push To Open
Product Series PEB
Product Type Push Button
Weight (Approximate) 5.10 oz
Width 1.5"
