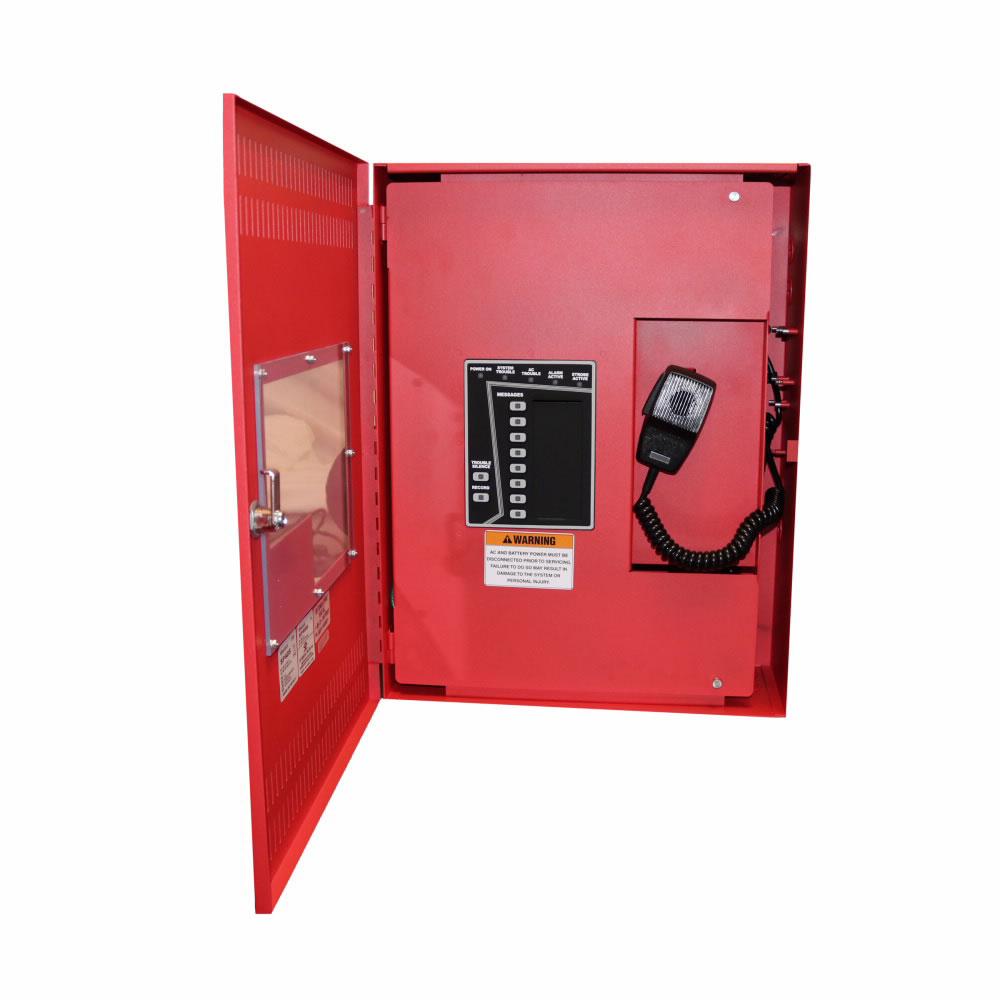

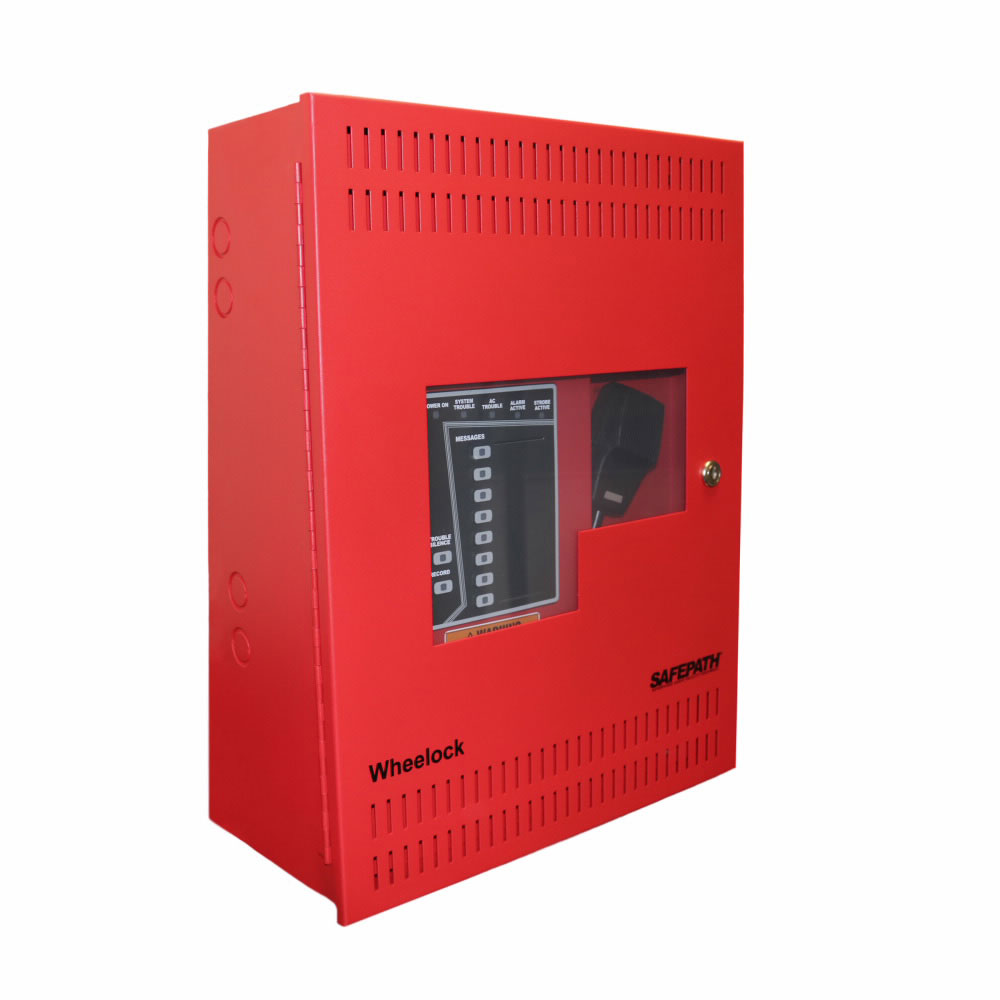

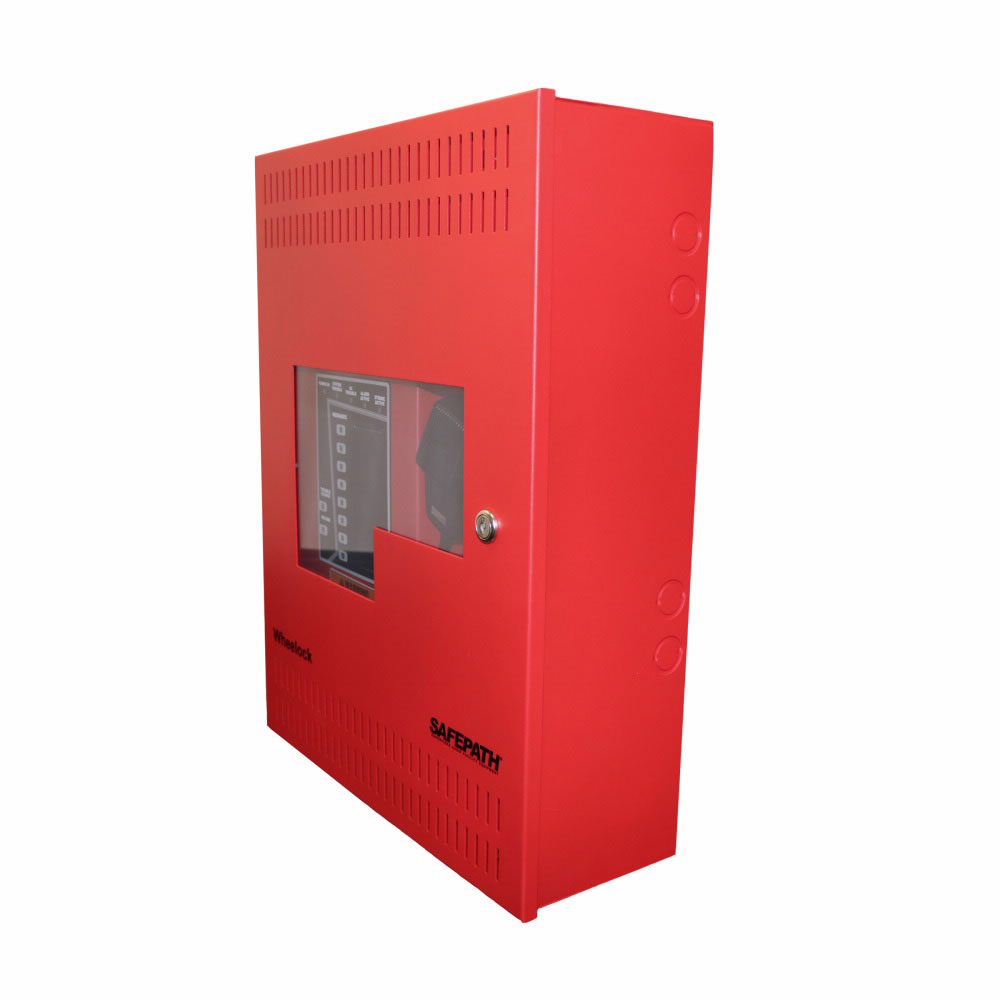

Eaton SAFEPATH In-Building Mass Notification System

Model: SP40S

Category: Voice Evacuation

Brand: Eaton / Wheelock

Dealer pricing

SAFEPATH (SP40S) is a indoor, multi-function, supervised emergency communications system that also provides paging, messaging, and background music. It can be used stand-alone or in combination with a fire alarm system, supplementing or replacing bells, horns, or similar appliances used to sound the evacuation signal when an alarm is initiated. SAFEPATH provides live voice and pre-recorded localized messaging to help direct people to safety. WAVES High Power Speaker Arrays (HPSA-7100-R) can be integrated with SAFEPATH to expand emergency communications outdoors.

In addition, SAFEPATH, when combined with audio boosters and Wheelock speakers, meets NFPA 72 (fire signaling) and NFPA 720 (CO signaling) low frequency tone requirements for sleeping areas.

Features

  • Approvals & Compliance: UL 864, UL 1711, UL 2017 (code 4), UL 864 (code 3), and the low frequency requirements of UL 464 (520 Hz); California State Fire Marshal (CSFM); New York City (MEA); FCC Part 15; ADA compliant
  • OSHA 1910.165 compliant; System does not require reliability inspections every two months or required spare parts inventory, saving the building owner costly inspection fees
  • Multi-function system: voice evacuation, mass notification, general paging per NFPA 72, supervised background music capabilities, noise masking, and low frequency tone requirements for sleeping room applications
  • Fully supervised: 2 amps of supervised 24 VCD strobe power per circuit; Supervised NAC and audio circuits; On-board diagnostics & trouble reporting circuits
  • Messaging: Built in tones, standard messages for different announcements, custom messages available
SAFEPATH alerts employees in all types of emergencies in various occupancies, including corporate campuses, educational facilities, industrial plants, warehouses, retail stores, and healthcare facilities.

Application/Usage Indoor, Emergency, Fire Alarm, Indoor, Multimedia System, Paging System, Telephone, Fire Alarm, Telephone, Multimedia System, Emergency, Paging System
Brand Name Eaton
Color Red, Red - Housing
Depth 6", 16", 21"
Height 6", 21"
Length 6"
Manufacturer Eaton Corporation
Model SP40S
Material Steel - Housing, Steel
Product Line SAFEPATH
Product Type In-Building Mass Notification System
Vendor Name Eaton / Wheelock
Weight (Approximate) 36 lb
Width 16"
