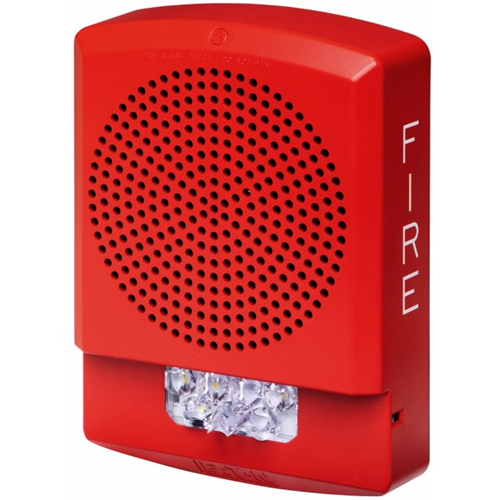

Eaton ELSPSTR Eluxa Wall Mount Speaker Strobe, Red

Description

The Wheelock Eluxa speakers by Eaton feature high fidelity sound output, and speaker strobe models include an advanced power saving LED technology with a full range of candela settings for indoor wall and ceiling-mount applications. With the widest frequency response range (300 to 8000 Hz) in the industry, the Eluxa ELSPK and ELSPST feature leading intelligibility with crisp, clear voice messages and tone signaling, ideal for emergency communications, mass notification, voice evacuation, and fire alarm.

High efficiency, LED technology

With the industry's smallest footprint, the Eluxa speakers and speaker strobes are aesthetically pleasing to building owners as the low profile design does not detract from the interior decor. Eluxa is feature rich with 6 candela settings in 1 device, dual voltage (25/70 VRMS) capability, field selectable taps from 1/8 to 2 watts (5W 70V) pre-wire/pre-test via mounting plate with hinged feature for ease-ofinstallation, and no tools needed for setting changes. These products are suitable for indoor wall and ceiling mount applications. The ELSPST speaker strobes and ELSPK speakers are 24V operation.

Approvals and synchronization

Eaton's Eluxa strobes meet the 20 millisecond light pulse duration requirements of the 2016 edition of NFPA 72. By meeting this latest requirement, xenon and LED devices can now be in the same field of view. The Eluxa notification appliances are listed under UL Standards 1971, 1638, and 1480 and under CAN/ULC-S526 and CAN/ULC-S541. The appliances are Restriction of Hazardous Substances (RoHS) compliant and contain no mercury or other hazardous substances. In addition, the Eluxa product line has been UL/ULC listed as compatible with all Fire Alarm Control Panels (FACP) and accessories that have been determined to be compatible with Exceder LED3 and Wheelock RSS strobe-based products, including the RSS, CH, E, EH, ET, ST, HS, MT, S8, SA, STH and Z Series. The listing also includes the ability to install the Eluxa strobes in the same notification zone and field of view with any Wheelock RSS strobe models.

Main Features

• High-fidelity sound output
• High intelligibility with a frequency range—300 to 8000 HZ— widest range in the industry
• Low frequency requirements of UL 464 (520 Hz) to meet NFPA’s 520 Hz tone requirements for sleeping areas
• Input Voltage: Selectable 25/70 VRMS
• Selectable Taps: 1/8–2 Watts (5W - 70V)
• Strobe Candela: Selectable 15/30/75/110/135/185cd
• Wall Mount
• Mounting plate included with all models: Convenient capture hinge allows installers to easily hold the device while fastening the singlemount screw in place
• Pre-wire/pre-test capability to check for wiring and ground faults prior to appliance installation
• Finger slide switches—no tools needed for setting changes
• Built-in adjustment feature and snap-on grille
