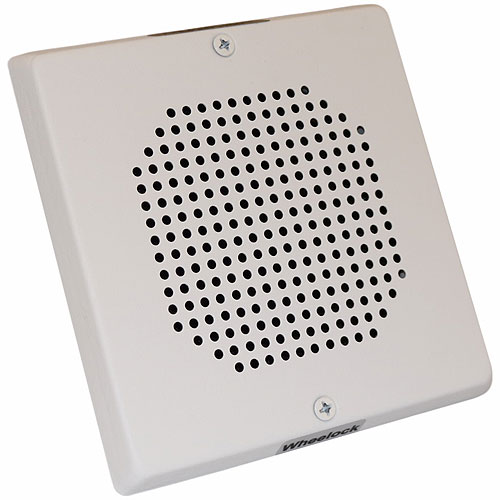

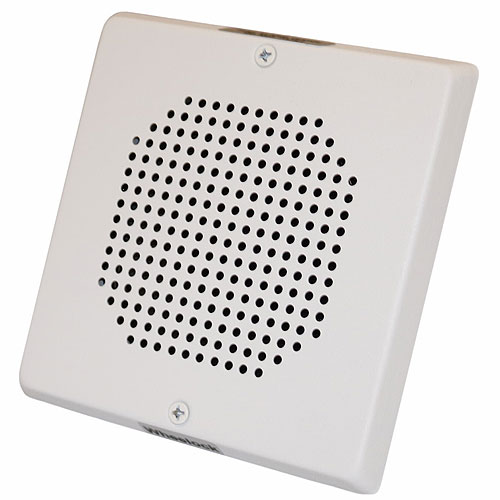

Cooper Wheelock E70-W Speaker

The Wheelock E70 Wall and E90 Ceiling Speakers and Speaker Strobes are designed for high efficiency sound output for indoor applications. The E product line features intelligible communications with crisp, clear voice messages and tone signaling, ideal for mass notification, and voice evacuation.

Providing a sleek aesthetic appearance, the Wheelock Series E High Speaker Strobes feature dual voltage (25/70 VRMS) capability and field selectable taps from 1/8 to 2 watts. The low profile design incorporates a speaker mounting plate for faster and easier installation. Each model has a built-in level adjustment feature and an aesthetic two (2) screw grille cover.

Features

• Approvals include: UL Standard 1971, UL Standard 1480, New York City (MEA), California State Fire Marshal (CSFM), Factory Mutual (FM) and Chicago (BFP) See approvals by model in Specifications and Ordering Information
• ADA/NFPA/ANSI compliant
• Complies with OSHA 29 Part 1910.165
• Wall mount models are available with Field Selectable Candela Settings of 15/30/75/110cd or 135/185cd (Multi-Candela models), or 1575cd (Single Candela model)
• Ceiling mount models are available with field selectable candela settings of 15/30/75/95cd or 115/177cd (Multi-candela models)
• Strobes produce 1 flash per second over the regulated voltage range
• 24 VDC with wide UL “Regulated Voltage” using filtered DC or unfiltered VRMS input voltage
• Synchronize with Wheelock SM, DSM or Wheelock PS-24-8MC Power Supply with built-in sync protocol
• Field selectable taps for 25 or 70 VRMS operation from 1/8 watt up to 2 watts
• High efficiency design for maximum output at minimum wattage across a frequency range of 400 to 4000 HZ
• Fast installation with IN/OUT screw terminals using #12 to #18 AWG wires
