Model: HSM2108

Category: Alarm Control Panels & Keypad, Expanders & V-Plex Accessories

Brand: Dsc

Dealer pricing

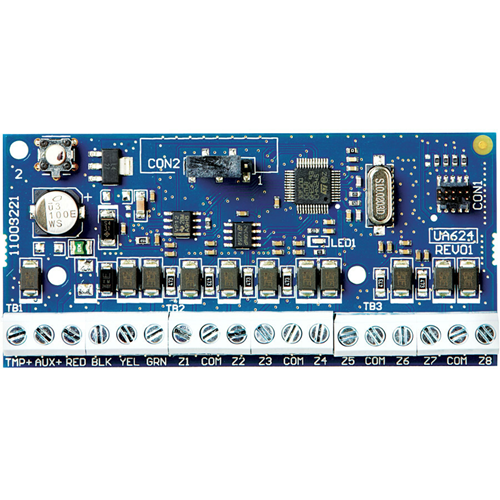

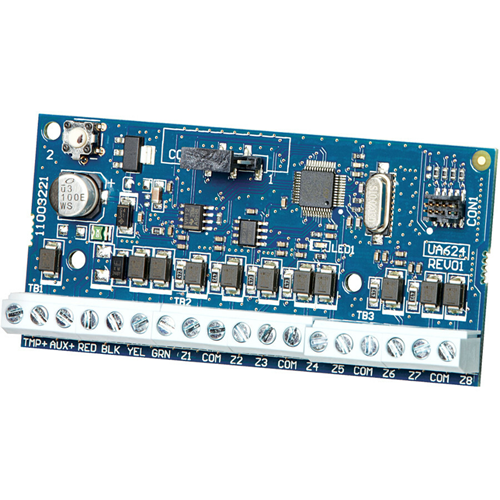

The HSM2108 is a zone input module that adds up to eight fully programmable zone to any PowerSeries Neo security system.

Main Features
  • Supports no end-of-line, single end-of-line and double end-of-line zone loops. (5,600 Ohm resistors)
  • Connect up to 15 modules per system
  • Tamper contact input
  • Dimensions: 45mm x 92mm (1.12/16” x 3 5/8”)
  • 40 mA (Max)
  • 12 VDC Nominal
  • Fully supervised expansion ensures constant communication with PowerSeries Neo control panel
  • Simple wiring can be home run, daisy chained or tee-tapped anywhere on the Corbus
  • Fully encrypted communications back to PowerSeries Neo

Application/Usage Control Panel
Brand Name DSC
Category Type Expanders & V-Plex Accessories
Compatibility DSC PowerSeries Neo Control Panel,
Device Supported Control Panel
Height 1.8", 3.6"
Input Voltage 12 V DC
Manufacturer Tyco International, Ltd
Model HSM2108
Maximum Operating Temperature 131°F (55°C), 131°F (55°C)
Minimum Operating Temperature 14°F (-10°C), 14°F (-10°C)
Product Line PowerSeries Neo
Product Type Alarm Control Panel Expansion Module
Vendor Name Dsc
Width 3.6", 1.8"
