DSC PowerSeries TouchScreen Security Interface
DSC PowerSeries TouchScreen Security Interface

DSC PowerSeries TouchScreen Security Interface

Model: PTK5507W

Category: Alarm Control Panels & Keypad, Intrusion LCD Keypads

Brand: Dsc

Dealer pricing

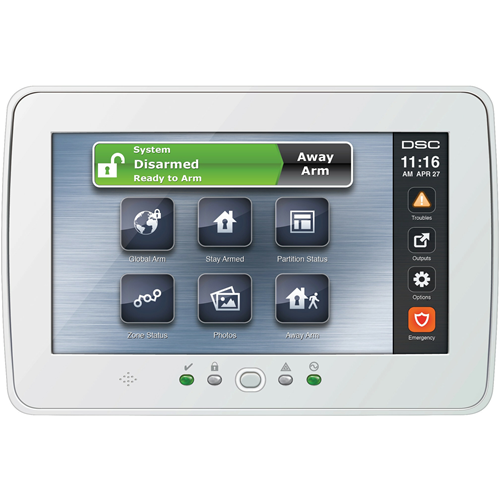

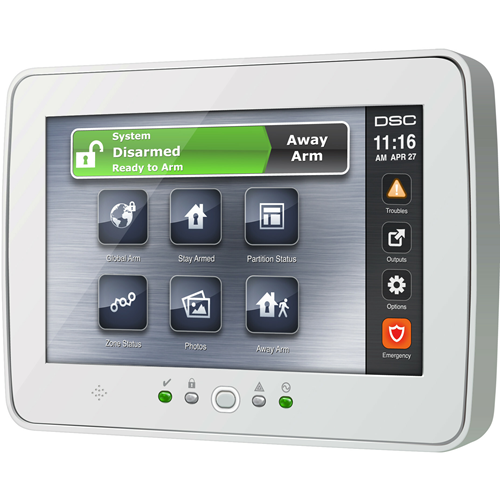

The PowerSeries TouchScreen keypad delivers an easy interactive way to manage and control security systems - at the touch of a finger. The TouchScreen keypad – the nerve centre of the security system – combines the keypad functionality users and installers have come to expect with an intuitive interface. Seamlessly integrated with PowerSeries security systems, the sleek, contemporary and modern look is valued by the homeowners; installers will appreciate the easy installation and programming features they have come to expect from DSC products.

The PowerSeries TouchScreen keypad has been designed with the user and installer in mind. For the user, menu driven, intuitive screens make programming very easy to configure desired options. The installer will also have the ability to do installer programming from virtual keypad, as well directly through the PowerSeries TouchScreen keypad.

Main Features
  • 7" full color touch display, virtual keypad
  • Slim modern design (800x480 resolution)
  • Intuitive LED indication of security system status
  • Picture frame & Clock feature
  • Output control
  • Intuitive user interface
  • Customizable home screen and wallpaper
  • Menu user programming & Installer programming
  • SD card is not included
  • Compatible with PC1864, PC1832, PC1616 control panels

Application/Usage Control Panel
Brand Name DSC
Category Type Intrusion LCD Keypads
Color White
Compatibility
Depth 0.8"
Device Supported Control Panel
Height 8.5", 5.1"
Input Voltage 12 V DC
Manufacturer Tyco International, Ltd
Model PTK5507W
Maximum Operating Temperature 120.2°F (49°C), 120.2°F (49°C)
Minimum Operating Temperature 32°F (0°C), 32°F (0°C)
Product Line PowerSeries
Product Series PowerSeries
Product Type Security Touchscreen Keypad
Vendor Name Dsc
Width 8.5"
