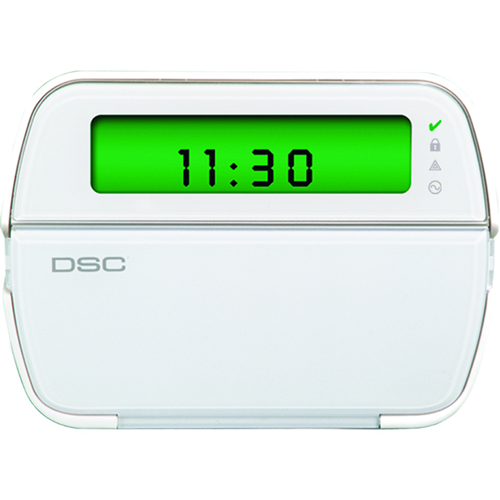

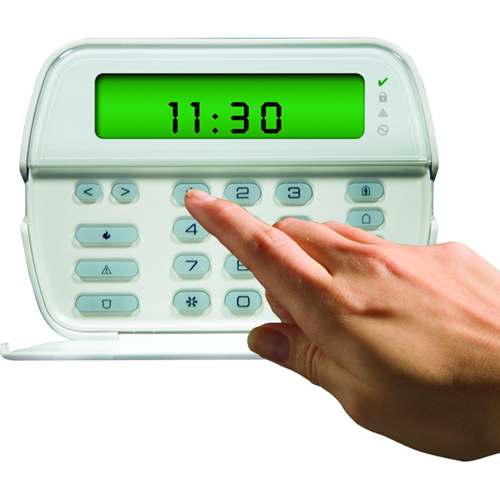

DSC PowerSeries 64-Zone LCD Picture Icon Keypad
DSC PowerSeries 64-Zone LCD Picture Icon Keypad

DSC PowerSeries 64-Zone LCD Picture Icon Keypad

Model: PK5501ENG

Category: Alarm Control Panels & Keypad, Intrusion LCD Keypads

Brand: Dsc

Dealer pricing

PowerSeries high-quality, slim-profile keypads achieve a clean, unobtrusive look that homeowners welcome and installers will appreciate for their easy programming and installation. The keypads feature an input/output terminal that can be programmed to operate as a zone input, programmable output or as a low temperature sensor. The keypads also include adjustable backlit keys that address low-light situations and five programmable keys for simple one button activation of system functions.

PK5500/RFK5500 64-zone full-message keypads support eight languages, global partition status and full, 32-character programmable phrases.

Main Features
  • Enlarged keypad buttons
  • 5 programmable function keys
  • Input/Output terminal can be programmed to operate as a zone input, programmable output or as a low temperature sensor
  • 3 one-touch emergency keys
  • Multiple door chime per zone
  • Adjustable backlight and keypad buzzer
  • Wire channel
  • Dual wall-mount and front cover tamper
  • Easy-to-install mounting hinge
  • Surface or single-gang box mount

Application/Usage Control Panel
Brand Name DSC
Category Type Intrusion LCD Keypads
Compatibility , DSC PowerSeries Control Panels
Depth 0.8", 4.4"
Device Supported Control Panel
Height 6.1", 4.4"
Input Voltage 12 V DC
Manufacturer Tyco International, Ltd
Model PK5501ENG
Maximum Operating Temperature 120.2°F (49°C), 120.2°F (49°C)
Minimum Operating Temperature 32°F (0°C), 32°F (0°C)
Product Type Security Keypad
Vendor Name Dsc
Width 6.1"
